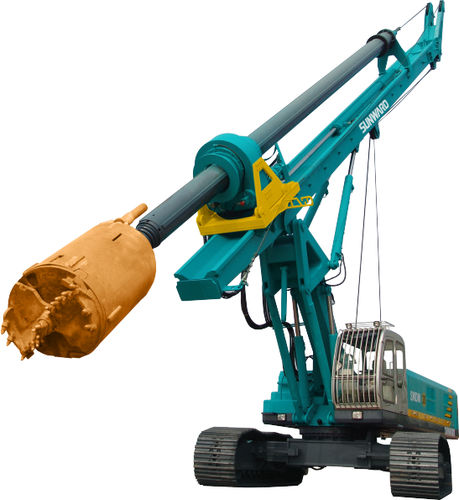

Continuous flight auger (CFA) drilling rig max. 34.3 MPa, 16 t | SWDM04
crawlerrotaryhydraulic

Continuous flight auger (CFA) drilling rig - max. 34.3 MPa, 16 t | SWDM04 - SUNWARD INTELLIGENT EQUIPMENT CO.,LTD. - crawler / rotary / hydraulic
Continuous flight auger (CFA) drilling rig - max. 34.3 MPa, 16 t | SWDM04 - SUNWARD INTELLIGENT EQUIPMENT CO.,LTD. - crawler / rotary / hydraulic
Add to favorites
Compare this product


Characteristics

Drilling type
continuous flight auger (CFA)
Mobility
crawler
Drilling unit
rotary
Other characteristics
hydraulic
Drilling diameter

Max.: 900 mm
(35 in)

Min.: 600 mm
(24 in)

Drilling depth

Max.: 23 m
(75'05" )

Min.: 0 m
(0'00" )

Description

Main Parameters Total weight 16t Working condition: L×W×H 5.1×2.42×8.67 (m) Transportation condition: L×W×H 6.18×2.42×3.22 (m) Max. Dilling Diameter Boring pile: with casing/without casing 600/900 (mm) CFA pile - Max. Drilling Depth Boring pile 23m(5 section) CFA pile - Engine Brand PERKINS Moder 1104-44T/1104D-E44T Rated power 74.5kW/2200rpm Max. torque 412N.m/1400rpm
