Mobile telescopic boom lift SWHT20
diesel

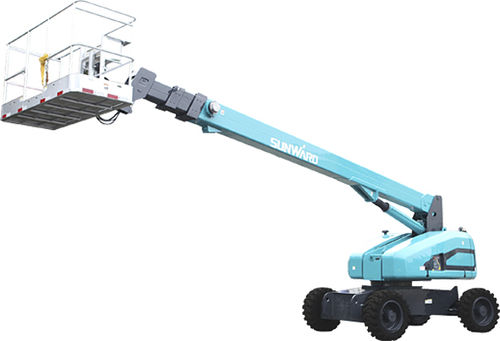

Mobile telescopic boom lift - SWHT20 - SUNWARD INTELLIGENT EQUIPMENT CO.,LTD. - diesel
Mobile telescopic boom lift - SWHT20 - SUNWARD INTELLIGENT EQUIPMENT CO.,LTD. - diesel
Add to favorites
Compare this product


Characteristics

Portability
mobile
Motor type
diesel

Description

Main Parameters Overall weight 12500kg Overall length: transport status 8630mm Overall width: axle--collect / stretch 2490mm Overall height 2920mm Max. operating height 20800mm Max. operating range 16500mm Working platform dimensions: L×W×H 2440×910×1230 (mm) Max. height of the working platform 19100mm Max. range of the working platform 15900mm Turntable tail swing: axle--collect / stretch 1207mm Carrying capacity: restricted range 450kg Carrying capacity: unrestricted range 270kg Max. allowable side-loading 680N Engine power 60kW System voltage 24V Fuel oil tank 128L Hydraulic oil tank 171L Traveling speed: axle--collect 6.07km/h Traveling speed: axle--lifting 1.1km/h Traveling speed: axle--full extension 0.6km/h Max. grade ability: 4×4 45% Max. grade ability: 4×2 30% Min. turning radius: axle collect 2910/6180 (mm) Min. turning radius: axle stretch - Wheelbase 2600mm Min. ground clearance 365mm Turntable slewing angle 360°(continuous) Platform swing angle 160°
