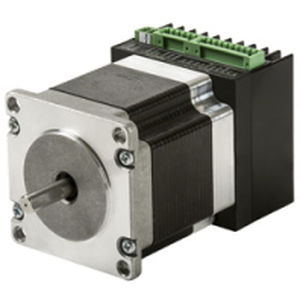

Stepper motor IST-34 seriesIP65IP20maintenance-free
Add to favorites
Compare this product
Characteristics
- Type
- stepper
- Protection class
- IP65, IP20, maintenance-free
- Configuration
- NEMA 34
- Other characteristics
- CANopen, EtherCAT, closed-loop
- Torque
3.5 Nm, 5 Nm, 5.5 Nm, 7.7 Nm
(2.5815 ft.lb, 3.6878 ft.lb, 4.0566 ft.lb, 5.6792 ft.lb)
Description
NEMA34 Closed Loop Stepper Motors
Advantages：
●Sophisticated closed loop control enhances motor performance with no step loss
●Operates in torque, velocity, and position modes
●Efficient torque utilization optimizes motor sizing
●Integrated design minimizes component and wiring requirements
●Reduced space, installation efforts and system cost
●Fieldbus: CANopen, EtherCAT
●Synchronized control of coordinated motion profiles
●Reduced machine complexity, as stepIM can function as distributed I/O points
●Up to IP65 protection class
●Maintenance free
●CE compliance
NEMA34 Closed-Loop Stepper Motors:
1.IP Catings:IP20/IP65;
2.Communication:CANopen/EtherCAT;
3.Input voltage:14-48/14-75(VDC);
4.I/Os:Digital (IP20): 4 x Input, 2 x output
Digital (IP65): 3 x Input, 1 x output
Analog 1 x Differential Input
5.Motor feedback:12 bit absolute encoder
6.Frame size:56.4mm
