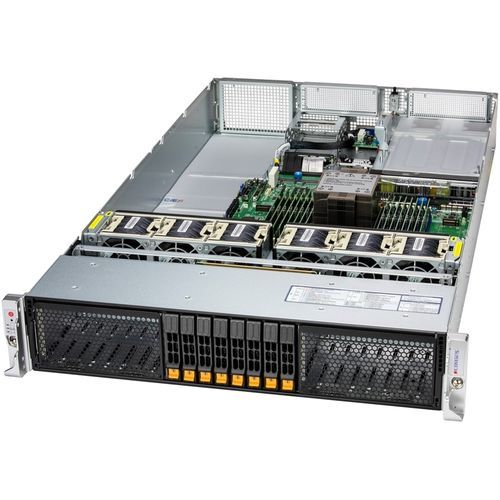

Network server SYS-212H-TN

videoGPU2U

Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Data Center Optimized, Database Processing and High Density Storage, Key Features Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.; Single Intel® Xeon® 6 Processor.; 16 DIMM slots supporting up to 1TB of memory (6700E series CPU).; Double width add-on card support.; Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).; Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.; Trusted Platform Module (TPM) 2.0 onboard.; Modularized and Tool-less design for easy serviceability.; Form Factor Enclosure: 437 x 88.9 x 806.2mm (17.2" x 3.5" x 31.74") Package: 672 x 253 x 1100mm (26.46" x 9.96" x 43.31") Processor Single Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect System Memory Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 16 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays 8 front hot-swap 2.5" SAS*/SATA* drive bays Option B: Total 16 bays 16 front hot-swap 2.5" SAS*/SATA* drive bays Option C: Total 24 bays 24 front hot-swap 2.5" SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID) Expansion Slots Option A
