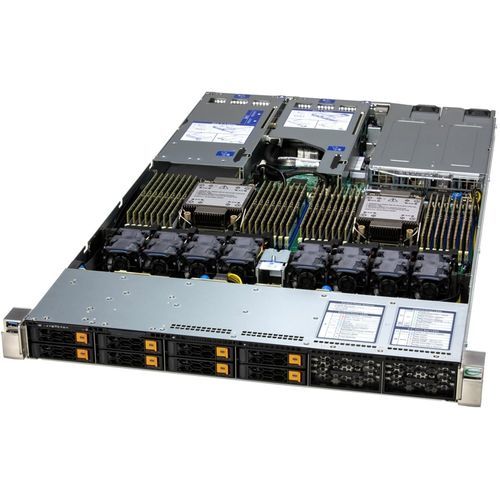

Storage server SYS-122H-TN

RAIDnetworkvideo

Virtualization, Software-defined Storage, High Performance Computing, Cloud Computing, Enterprise Server, Key Features Dual Intel® Xeon® 6 6700 series processors with E-cores; 32 DIMM slots supporting up to 4TB of memory; 3 PCIe 5.0 x16 slots with support for Network/Storage/GPU/Accelerator cards; Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible); 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card; Form Factor Enclosure: 438.4 x 43.6 x 743.38mm (17.3" x 1.71" x 29.27") Package: 605 x 203 x 950mm (23.82" x 7.99" x 27.4") Processor Dual Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache per CPU GPU Up to 1 double-width or 3 single-width GPUs System Memory Slot Count: 32 DIMM slots Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) Expansion Slots Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) On-Board Devices NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) Chipset: System on Chip Network Connectivity: Via AIOM Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) USB: 2 USB 3.0 port(s) (rear) 1 USB 3.0 port(s) (front) Video: 1 VGA port(s)
