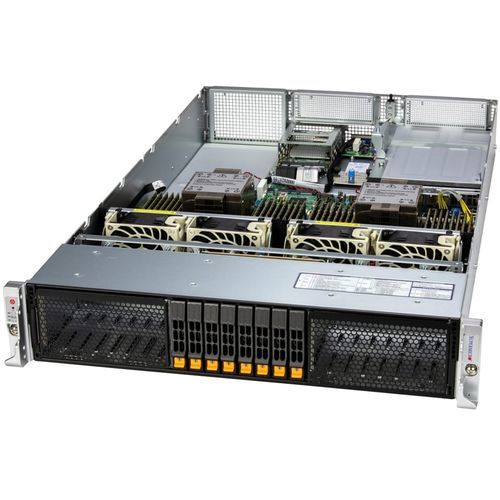

Storage server SYS-222H-TN

RAIDnetworkvideo

Virtualization, Software-defined Storage, High Performance Computing, Cloud Computing, Enterprise Server, Key Features Dual Intel® Xeon® 6 6700 series processors with E-cores; 32 DIMM slots supporting up to 4TB of memory; Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards; Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible); 8x 2.5" hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card; Form Factor Enclosure: 438.4 x 88 x 755.2mm (17.3" x 3.5" x 29.73") Package: 605 x 257 x 947mm (23.82" x 10.12" x 37.28") Processor Dual Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache per CPU GPU Up to 4 double-width or 8 single-width GPUs System Memory Slot Count: 32 DIMM slots Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 16 bays 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option B: Total 24 bays 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) Expansion Slots PCI-Express (PCIe) Configuration: Option A* 4 PCIe 5.0 x16 FH/10.5"L double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) Option B* 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) CXL Support: Up to 4 CXL 2.0 x16/x8 devices
