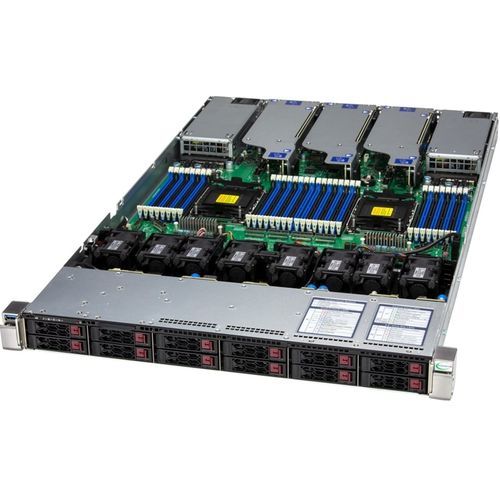

RAID server SYS-122C-TN

networkvideoGPU

Networking Appliance, Data Center Optimized, Value IaaS, Cloud Computing, HPC, Data Center, Private & Hybrid Cloud, Cloud Solution Provider (CSP), Key Features Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability; Optimized power & balanced performance for cloud applications; Server management flexibility with OpenBMC; Form Factor Enclosure: 438.4 x 43.6 x 755.1mm (17.2" x 1.7" x 29.7") Package: 580 x 185 x 1080mm (22.83" x 7.28" x 42.5") Processor Dual Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache per CPU GPU Up to 3 single-width GPUs System Memory Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Drive Bays Configuration Default: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) Expansion Slots Default 2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x8 LP slot 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) On-Board Devices NVMe: NVMe; RAID 0/1/5/10 support(VROC HW key required) Chipset: System on Chip Network Connectivity: Via Slim-AIOM Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) USB: 1 USB 3.0 Type-A port(s) (Rear) Video: 1 VGA port(s) (Rear) TPM: 1 TPM header
