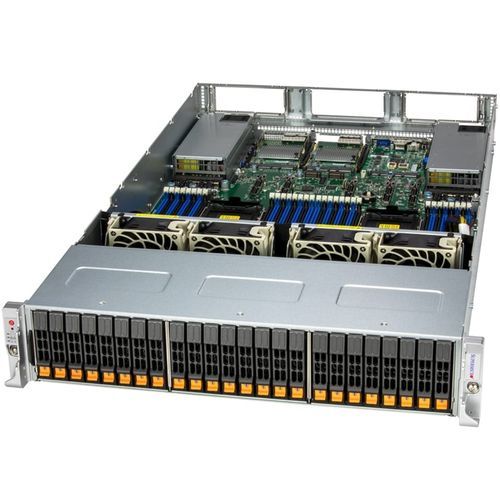

Network server SYS-222C-TN

videoGPU2U

Networking Appliance, Data Center Optimized, Value IaaS, Cloud Computing, HPC, Data Center, Private & Hybrid Cloud, Cloud Solution Provider (CSP), Key Features Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability; Optimized power & balanced performance for cloud applications; Server management flexibility with OpenBMC; Form Factor Enclosure: 438 x 88 x 780mm (17.25" x 3.47" x 30.7") Package: 597 x 239 x 1097mm (23.5" x 9.4" x 43.2") Processor Dual Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache per CPU GPU Up to 3 double-width or 6 single-width GPUs System Memory Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Drive Bays Configuration Default: Total 24 bays 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID) Expansion Slots PCI-Express (PCIe) Configuration: Default 4 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot Option A 2 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot CXL Support: Up to 3 internal CXL 2.0 x16/x8 Type 2/Type 3 devices On-Board Devices NVMe: NVMe; RAID 0/1/5/10 support(VROC HW key required) Chipset: System on Chip Network Connectivity: Via Slim-AIOM Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) Video: 1 VGA port(s) (Rear) TPM: 1 TPM header
