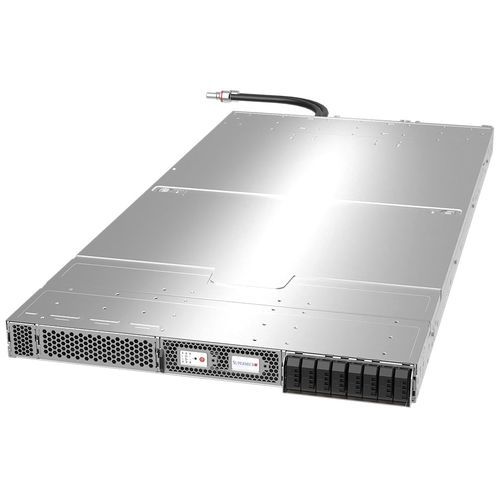

Network server ARS-111GL-NHR-LCC

videoGPU1U

High Performance Computing, AI/Deep Learning Training and Inference, Large Language Model (LLM) and Generative AI, Key Features NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s; Up to 576GB of coherent memory per node including 480GB LPDDR5X and 96GB of HBM3 for LLM applications; 2x PCIe 5.0 x16 slots supporting NVIDIA BlueField®-3 or ConnectX®-7; 7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control; This system supports two E1.S drives directly from the processor only.; Form Factor Enclosure: 440 x 44 x 940mm (17.33" x 1.75" x 37") Package: 1219 x 241 x 711mm (48" x 9.5" x 28") GPU Max GPU Count: Up to 1 onboard GPU Supported GPU: NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Liquid-cooled) CPU-GPU Interconnect: NVLink®-C2C System Memory Slot Count: Onboard Memory Max Memory: Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 96GB ECC HBM3 Drive Bays Configuration Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays M.2: 2 M.2 NVMe slots (M-key) Expansion Slots Default 2 PCIe 5.0 x16 FHFL slots On-Board Devices System on Chip Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) Video: 1 mini-DP port(s) System Cooling Fans: 9 Removable heavy-duty 4cm Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) Power Supply 2x 2000W Redundant Titanium Level (96%) power supplies System BIOS BIOS Type: AMI 64MB SPI Flash EEPROM PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment
