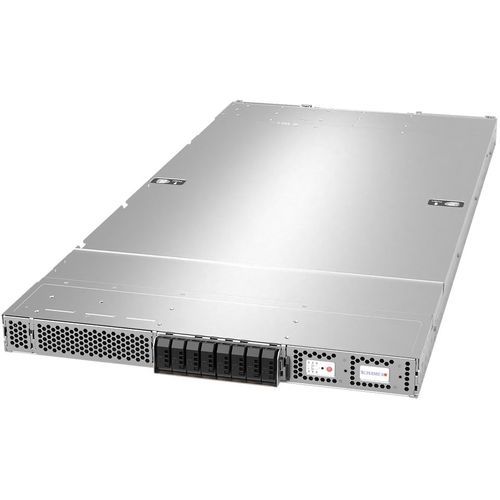

Network server ARS-121L-DNR

videoGPU1U

High Performance Computing, Hyperscale Cloud Applications, Data Analytics, Key Features NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and CPU at 900GB/s; Up to 4x Hot-swap E1.S drives and 2x M.2 NVMe drives per node; 7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control; Two nodes in a 1U form factor. Each node supports the following:; Pending a firmware fix, this system currently supports four E1.S drives and two GPUs. Please consult your Supermicro Salesperson for details.; Form Factor Enclosure: 440 x 44 x 940mm (17.33" x 1.75" x 37") Package: 1219 x 241 x 711mm (48" x 9.5" x 28") Processor Single processor(s) GPU Max GPU Count: Up to 1 double-width or 1 single-width GPU GPU-GPU Interconnect: PCIe System Memory Slot Count: Onboard Memory Max Memory: Up to 480GB ECC Drive Bays Configuration Default: Total 4 bays 4 front hot-swap E1.S NVMe drive bays M.2: 2 M.2 NVMe slots (M-key) Expansion Slots Default 2 PCIe 5.0 x16 FHFL slots On-Board Devices NVIDIA C2 Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) Video: 1 mini-DP port(s) System Cooling Fans: 9 Removable heavy-duty 4cm Fan(s) Power Supply 2x 2700W Redundant Titanium Level (96%) power supplies System BIOS BIOS Type: AMI 32MB SPI Flash EEPROM PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
