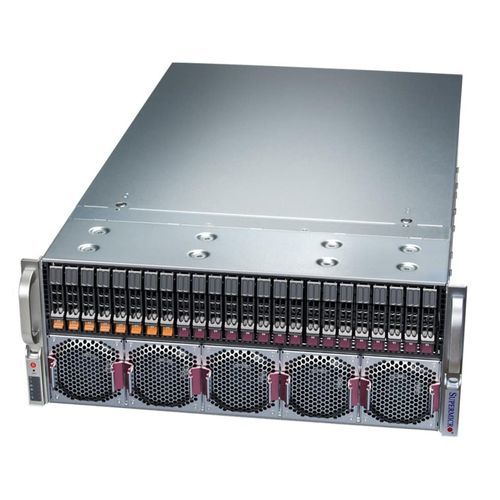

Storage server AS -4145GH-TNMR

networkvideo4U

Artificial Intelligence (AI), Large Language Model (LLM), Cloud Solution Provider (CSP), High Performance Comptue (HPC), Research Lab, Key Features Onboard 512GB HBM3 stacks memory; Optional PCIe configurations up to 8 PCIe x16 slots; Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible); Default 8 hot-swap 2.5" NVMe drive bays or Optional 24 hot-swap 2.5" SAS3/SATA3 drive bays via storage add-on card 2 Internal NVMe/SATA M.2 slots; 10 heavy duty fans w/ optimal fan speed control; 4x 2700W redundant Titanium level power supplies; Form Factor Enclosure: 438.4 x 177 x 848.7mm (17.3" x 7" x 33.4") Package: 720 x 435 x 1080mm (28.34" x 17.12" x 42.5") GPU-GPU Interconnect: AMD Infinity Fabric™ Link System Memory Slot Count: Onboard Memory Max Memory: Up to 512GB non-ECC HBM3 Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 2.5" NVMe drive bays Option A: Total 16 bays 16 front hot-swap 2.5" NVMe drive bays Option B: Total 24 bays 24 front hot-swap 2.5" SAS*/SATA* drive bays (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key) Expansion Slots Default 4 PCIe 5.0 x16 FHFL slots 6 PCIe 5.0 x8 FHFL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible) Option A 6 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 FHHL slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B 12 PCIe 5.0 x8 FHFL slots 2 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible) Option C 4 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x8 FHFL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible) On-Board Devices Chipset: AMD SH5 Network Connectivity: Via AIOM
