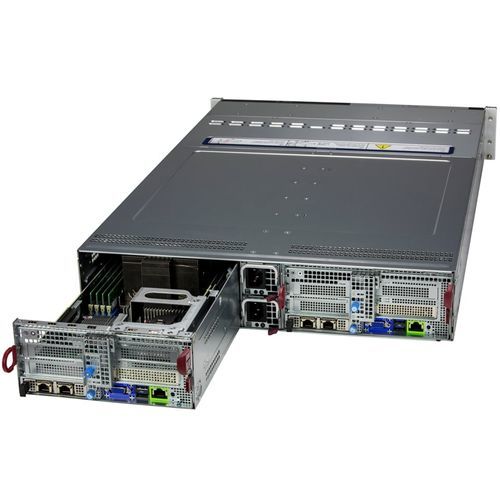

Network server SYS-222BT-DNR

video2UIntel® Xeon

High-Performance File System, Diskless HPC Clusters, Scale Out All-Flash NVMe Storage, Big Data Analytics and AI, Key Features Flexible networking with OCP 3.0 AIOM slot; Up to 2 PCIe 5.0 x8 LP + 1 PCIe 5.0 x16 LP slots Internal PCIe 5.0 for 2x NVMe M.2 support onboard Optional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1; Up to 12 front hot-swap 2.5" PCIe 5.0 NVMe drive bays; Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:; Form Factor Enclosure: 449 x 88 x 730mm (17.68" x 3.47" x 28.75") Package: 626 x 248 x 1150mm (24.65" x 9.76" x 45.28") Processor Dual Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache per CPU System Memory Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 64000MT/s ECC DDR5 RDIMM Drive Bays Configuration Default: Total 12 bays 12 front hot-swap 2.5" PCIe 5.0 NVMe drive bays M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID) Expansion Slots Default 2 PCIe 5.0 x8 LP slots 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) On-Board Devices Chipset: System on Chip Network Connectivity: Via AIOM Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) Video: 1 VGA port(s) System Cooling Fans: 4x 16.5K RPM Heavy Duty 80x80x38mm Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) Power Supply 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies System BIOS BIOS Type: AMI 32MB Flash ROM Management SuperCloud Composer; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin- Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
