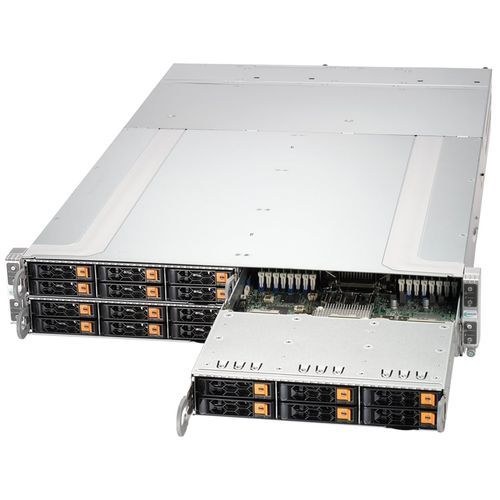

Storage server SYS-212GT-HNR

networkvideo2U

Scale Out All-Flash NVMe Storage, Scale-Out Object Storage, Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact Server, Virtualization Server (VSAN), Network Function Virtualization, Software Defined Storage, General Purpose, Multi-Purpose CDN, Mission Critical Web Applications, Key Features Dense compute, storage and flexible networking configurations optimized for software-defined storage applications; Front access nodes for cold aisle serviceability; 16 DIMM Slots supporting up to 1TB of memory; ECC RDIMMs up to DDR5-6400; Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:; Form Factor Enclosure: 449 x 88 x 711.2mm (17.67" x 3.46" x 28") Package: 626 x 248 x 1150mm (24.65" x 9.76" x 45.28") Processor Single Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache System Memory Slot Count: 16 DIMM slots/2 Channels Drive Bays Configuration Default: Total 6 bays 6 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280; VROC required for RAID) Expansion Slots Default 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) On-Board Devices Chipset: System on Chip Network Connectivity: Via IO Module Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) Video: 1 VGA port(s) System Cooling Fans: 2x 16K RPM Heavy Duty 8cm Fan(s) Power Supply 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies System BIOS BIOS Type: AMI 64MB Flash ROM Management SuperCloud Composer; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin- Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
