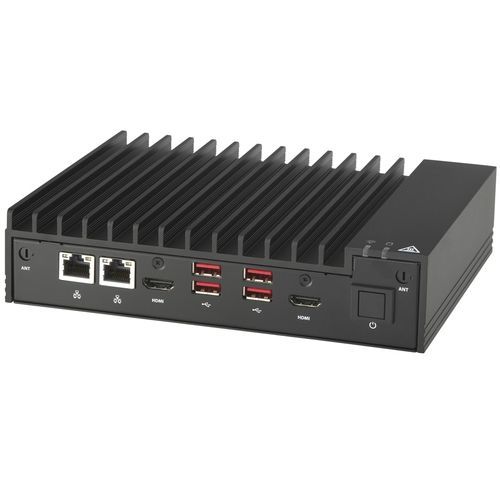

Network server SYS-E100-14AM-L

videoembeddedIntel® Processor N97

Industrial / Automation, Healthcare, Digital Signage Kiosk, Interactive info system, Retail, Key Features 2x RJ45 2.5GbE (Intel i226-IT); Form Factor Enclosure: 195 x 44 x 150mm (7.68" x 1.73" x 5.94") Package: 300 x 130 x 279mm (11.81" x 5.12" x 11") Up to 4C/4T; Up to 6MB Cache System Memory Slot Count: 1 DIMM slots/1 Channels Drive Bays Configuration 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280; USB 3.0) 1 M.2 PCIe 3.0 x1 NVMe slot (M-key 2242/2280) Expansion Slots 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280) 1 M.2 slot (E-key 2230(default)) 1 M.2 PCIe 3.0 x1 SATA slot (M-key 2242/2280) On-Board Devices Chipset: System on Chip Network Connectivity: 2 RJ45 2.5GbE with Intel® I226-IT Input / Output LAN: 2 RJ45 2.5 GbE LAN port(s) (Intel® I226) Video: 2 HDMI 1.4 port(s) (Front) System Cooling Fans: N/A System BIOS BIOS Type: AMI 256MB SPI Flash EEPROM Management Supermicro SuperDoctor® 5 (SD5) Dimensions and Weight Weight: Gross Weight: 4.3 lbs (1.95 kg) Net Weight: 2.16 lbs (0.98 kg) Available Color: Black Operating Environment RoHS Compliant Operating Temperature: 0°C ~ 50°C (32°F ~ 140°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
