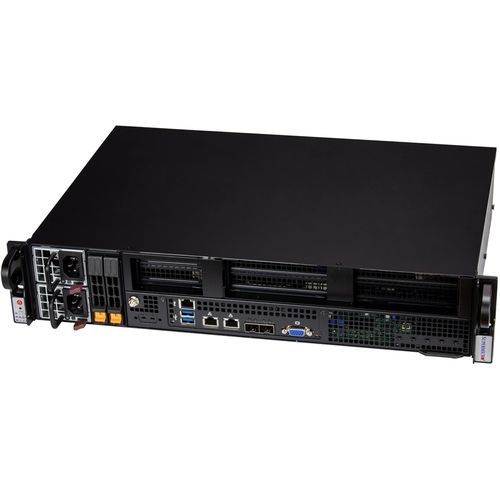

Network server SYS-212B-FN4TP

videoGPU2U

5G Core and Edge, AI Inference and Machine Learning, Network Function Virtualization, Cloud Computing, Key Features Design with compliance to NEBS-Level 3; 8 DIMM slots supporting up to 1TB of memory; Up to 4 PCIe 5.0 x16 (3 FHHL + 1 HHHL) &1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards; Onboard 2x 10GbE, 2X 10G SFP+; Optional 2 front hot-swap 2.5" NVMe drive bays; Form Factor Enclosure: 436.88 x 88.9 x 298.8mm (17.2" x 3.5" x 11.8") Package: 490 x 188 x 590mm (19.3" x 7.4" x 23.3") Processor Single Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores Up to 144C/144T; Up to 108MB Cache GPU Max GPU Count: Up to 3 single-width GPUs CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: PCIe System Memory Slot Count: 8 DIMM slots Drive Bays Configuration Default: Total 2 bays 2 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) Expansion Slots PCI-Express (PCIe) Configuration: Default* 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 HHHL slot 1 PCIe 5.0 x8 HHHL slot Option A* 3 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x8 HHHL slot Option B* 3 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x16 HHHL slot (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key) On-Board Devices NVMe: NVMe; RAID 0/1 support(Intel® VROC RAID key required) Chipset: System on Chip Network Connectivity: 2 RJ45 10GBASE-T with Intel® X710-TM4 2 SFP+ 10GbE with Intel® X710-TM4
