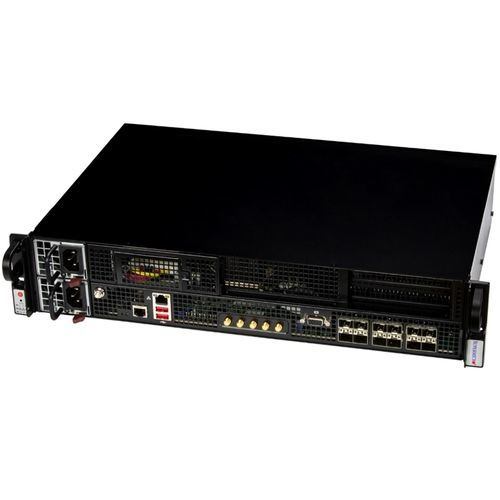

RAID server SYS-211E-FRN13P

networkvideoGPU

Network Function Virtualization, Cloud Computing, 5G CU/DU Edge Server, Flex RAN, Open RAN vBBU, Key Features Design with compliance to NEBS-Level 3 Onboard DPLL/OCXO, Up to 8 hours hold-over IEEE 1588 PTP, SyncE and integrated GNSS / 1PPS / 10MHz design for high- precision timing sync; 2x PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards; Onboard 12x 25GbE SFP28 ports; 2x 2.5" drive bays for SSD drives; Redundant 800W AC Power Supplies; Ultra short depth, 2U Front I/O Edge Server 1 x RJ45 for dry contact; Form Factor Enclosure: 436.88 x 88.9 x 298.8mm (17.2" x 3.5" x 11.8") Package: 490 x 188 x 590mm (19.3" x 7.4" x 23.3") Processor Single Socket E (LGA-4677) Up to 32C/64T; Up to 82.5MB Cache GPU Up to 1 double-width GPU System Memory Slot Count: 8 DIMM slots Drive Bays Configuration Default: Total 2 bays 2 internal fixed 2.5" SATA drive bays M.2: 1 M.2 NVMe slot (M-key 2280) Expansion Slots Default 2 PCIe 5.0 x8 FHHL slots On-Board Devices SATA: SATA (6Gbps) ; RAID 0/1 support(Intel® VROC RAID key required) Chipset: Intel® C741 Network Connectivity: 1 RJ45 1GbE with Intel® I210-AT 12 QSFP28 25GbE with Intel® E810-CAM1 Input / Output LAN: 1 RJ45 1 GbE LAN port(s) (IPMI shared on LAN port 1) 12 SFP28 25 GbE LAN port(s) (IPMI shared on LAN port 10) Video: 1 VGA port(s) Others: 1 Dry contact (4 sets) port(s) 5 SMA (GNSS / 10MHz out / 1PPS out / 10MHz in / 1PPS in) port(s) System Cooling Fans: 4x 4-PIN PWM 8cm Fan(s) Power Supply 2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies System BIOS BIOS Type: AMI 256MB SPI Flash Management SuperCloud Composer; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
