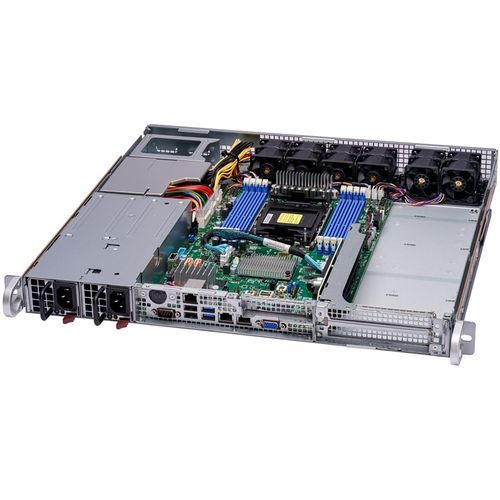

RAID server SYS-111E-FWTR-OS1

networkvideoAI edge

Multi-Access Edge Computing, Flex-RAN, Open-RAN vBBU, Artificial Intelligence (AI) on Edge, DU of 5G Application, Satellite Communication, Support Supermicro Openbmc, Key Features 2x 2.5" drive bays; 1 M.2 NVMe (PCIe 3.0 x2 from PCH); 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s); 800W AC Redundant Power Supplies Level; Form Factor Enclosure: 436.88 x 44.5 x 429.3mm (17.2" x 1.7" x 16.9") Package: 685 x 203 x 609mm (27" x 8" x 24") Processor Single Socket E (LGA-4677) Up to 32C/64T; Up to 60MB Cache System Memory Slot Count: 8 DIMM slots Drive Bays Configuration Default: Total 2 bays 2 internal fixed 2.5" SATA drive bays M.2: 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110) Expansion Slots Default 1 PCIe 5.0 x16 LP slot 2 PCIe 5.0 x16 FHFL slots On-Board Devices SATA: SATA (6Gbps) ; RAID 0/1 support(Port 8 to 9) Chipset: Intel® C741 Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2) Video: 1 VGA port(s) (Front) TPM: 1 TPM header System Cooling Fans: 6 heavy duty with optimal speed control and 40x40x65mm Fan(s) Power Supply 2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies Management SuperCloud Composer; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory FAN: Fans with tachometer monitoring Status monitor for speed control
