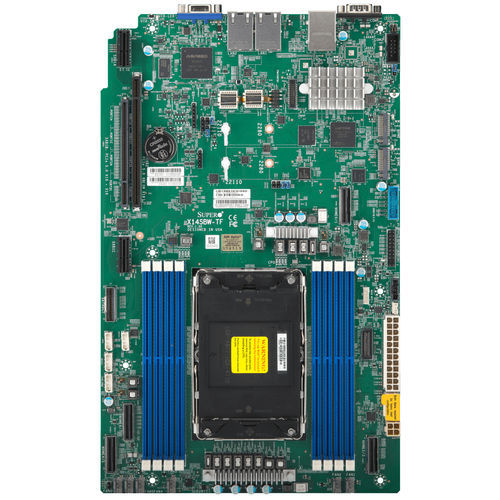

AT motherboard X14SBW-TF

Intel® XeonIntel® Core™ i7-6700Intel®

Physical Stats Form Factor - Proprietary WIO Dimension - 8" x 13" (20.32cm x 33.02cm) Core - Up to 144 (E) cores System Memory Memory Capacity - 8 DIMM slots Memory Voltage - 1.1V Error Detection - Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset - ASMediaASM1164 controller for 8 SATA3 ports IPMI - ASPEED AST2600 BMC Network Controllers - Dual LAN with 10GBase-T with Intel® X550 Input / Output LAN Video Output - 1 VGA D-Sub Connector port(s) Serial Port - 2 COM Port(s) (1 header; 1 rear) TPM - 1 TPM Header 1 TPM TPM 2.0 onboard Expansion Slots Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type - AMI 64MB AMI UEFI BIOS Features - ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 PC Health Monitoring Voltage - VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages LED - UID/Remote UID CPU / System Overheat LED Temperature - Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI FAN - 6x 4-pin fan headers (up to 6 fans) Fan speed control Overheat LED indication Other Features - WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
