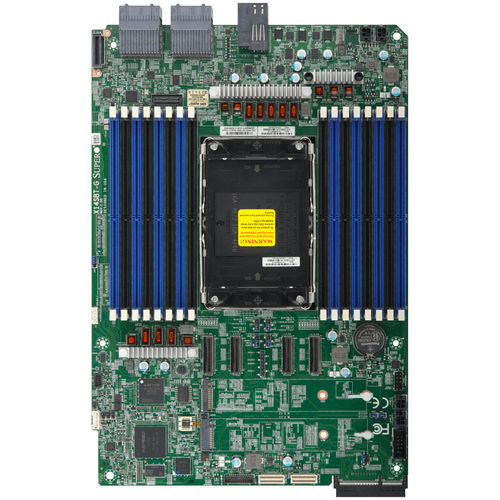

AT motherboard X14SBT-G

Intel® XeonIntel® Core™ i7-6700Intel®

Physical Stats Form Factor - Proprietary Dimension - 8.53" x 12.42" (21.67cm x 31.55cm) Core - Up to 144 (E) cores System Memory Memory Capacity - 16 DIMM slots Memory Type - 6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC) DIMM Sizes - 32GB, 64GB, 128GB Memory Voltage - 1.1V Error Detection - Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset - System on Chip ASPEED AST2600 BMC Network Controllers - AIOM for LAN Input / Output Serial Port - 1 COM Port(s) (1 header) TPM - 1 TPM Header Expansion Slots Form Factor: 2280/22110 System BIOS BIOS Type - AMI 64MB AMI UEFI BIOS Features - ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 PC Health Monitoring Voltage - VBAT, System level control, Supports system management utility, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V LED - UID/Remote UID CPU / System Overheat LED Temperature - Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI FAN - Fan speed control Other Features - WOL UID M.2 NGFF connector Control of power-on for recovery from AC power loss ACPI power management
