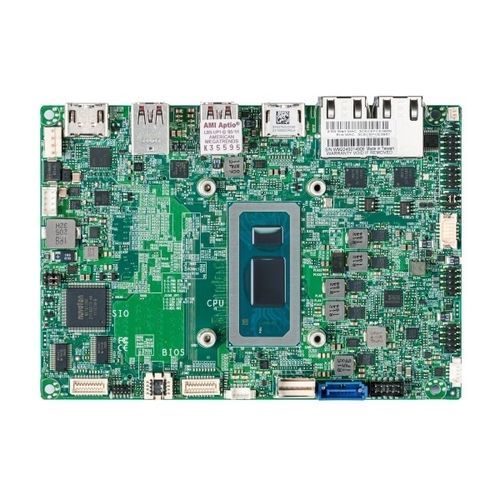

First performance hybrid architecture from Intel
4 independent display with 4K resolution
Fast AI hardware acceleration
High speed connectivity through dual 2.5GbE
100% wide temp grade design and components applied
12-24V wide range power with RVP and TVS
Hailo-8™ powerful and efficient Edge AI solution integration ready
Physical Stats
Dimension -
5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU -
Single Socket FCBGA-1744 supported, CPU TDP supports Up to 28W TDP
Core -
Up to 12 cores, 16 threads / 12MB Cache
System Memory
Memory Capacity -
2 DIMM slots
Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
Memory Type -
4800 MT/s non-ECC DDR5 SODIMM Unbuffered
DIMM Sizes -
8GB, 16GB, 32GB
Memory Voltage -
1.1V
On-Board Devices
Chipset -
System on Chip
SATA -
Intel Mobile Chipset controller for 1 SATA3 ports
Audio -
ALC 888S HD Audio
Graphics -
1 Intel® Iris® Xe Graphics port(s)
4 Independent Displays from Dual DP (Alt mode)/HDMI 2.0b/HDMI1.4
Network Controllers -
Dual LAN with Intel® Ethernet Controller I226-IT, 2.5G, TSN, industrial grade
Input / Output
Video Output -
Serial Port -
4 COM Port(s) (4 header), 2 RS-232/422/485 with flow control, 2 RS-232
TPM -
1 TPM Chip
Others -
1 8-bit GPIO header
1 SMBus header
Expansion Slots
PCIe -
1 PCIe 4.0 x4 SlimSAS
M.2 -
M.2 Interface: 1 PCIe 4.0 x4; 1 CNVi/PCIe 3.0 x1/USB2; 1 SATA or PCIe x1/USB3/USB2
Form Factor: 2242/2280, 2230, 2242/2280
Key: M-Key, E-Key, B-Key
System BIOS
BIOS Type -
AMI UEFI
BIOS Features -
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8B
PCI FW 3.3
RTC (Real Time Clock) Wakeup
