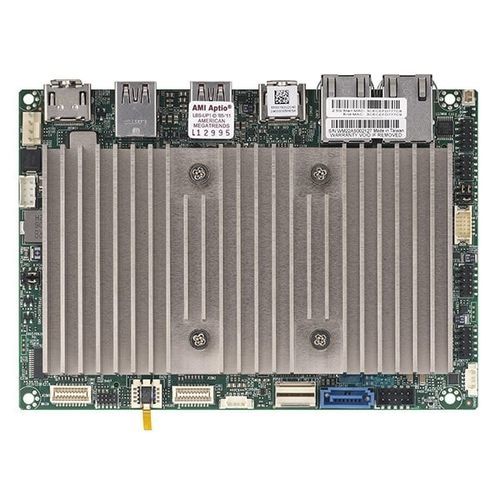

3.5" motherboard X13SRN-E
13th Generation Intel® Core™Intel® Core™ i5-1350PEDDR5 SO-DIMM

3.5" motherboard - X13SRN-E  - SUPERMICRO - 13th Generation Intel® Core™ / Intel® Core™ i5-1350PE / DDR5 SO-DIMM
3.5" motherboard - X13SRN-E  - SUPERMICRO - 13th Generation Intel® Core™ / Intel® Core™ i5-1350PE / DDR5 SO-DIMM
Add to favorites
Compare this product


Characteristics

Format
3.5"
Processor
13th Generation Intel® Core™, Intel® Core™ i5-1350PE
Memory
DDR5 SO-DIMM
Extension slot
SATA3, M.2 Key E, M.2 Key M, M.2 Key B, Mini PCIe
Applications
industrial, network
Connectivity
USB 3.2, HDMI, RS-232, RS-485, RS-422, Ethernet

Description

First performance hybrid architecture from Intel 4 independent display with 4K resolution Fast AI hardware acceleration Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution High speed connectivity through dual 2.5GbE 100% wide temp grade design and components applied 12-24V wide range power with RVP and TVS Hailo-8™ powerful and efficient Edge AI solution integration ready Physical Stats Dimension - 5.7" x 4" (14.6cm x 10.16cm) Core - Up to 12 cores, 16 threads / 12MB Cache System Memory DIMM Sizes - 8GB, 16GB, 32GB Memory Voltage - 1.1V On-Board Devices Chipset - System on Chip SATA - Intel Mobile Chipset controller for 1 SATA3 ports Audio - ALC 888S HD Audio Graphics - 1 Intel® Iris® Xe Graphics port(s) 4 Independent Displays from Dual DP (Alt mode)/HDMI 2.0b/HDMI1.4 Network Controllers - Dual LAN with Intel® Ethernet Controller I226-IT, 2.5G, TSN, industrial grade Input / Output TPM - 1 TPM Chip Others - 1 8-bit GPIO header 1 SMBus header Expansion Slots PCIe - 1 PCIe 4.0 x4 SlimSAS Form Factor: 2242/2280, 2230, 2242/2280 System BIOS BIOS Type - AMI UEFI BIOS Features - ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8B PCI FW 3.3 RTC (Real Time Clock) Wakeup Management System Management Software - SuperDoctor® 5 Power Configurations - ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input Security Hardware - Trusted Platform Module (TPM) 2.0 PC Health Monitoring Voltage - VBAT, +5V, +3.3V, +12V, +1.8V PCH, +3.3V standby, Vmem, Vcore, +1.05V LED - Power LED LAN activity LED HDD Activity LED Temperature - CPU thermal trip support peripheral temperature System temperature CPU temperature PCH temperature
