ATX motherboard B14DBT
Intel® XeonDDR5 SO-DIMMMini PCIe

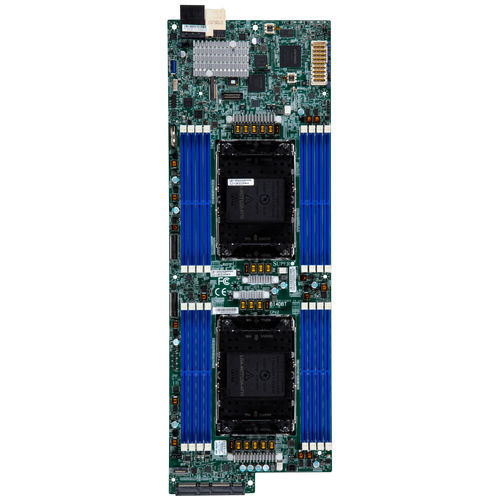

ATX motherboard - B14DBT  - SUPERMICRO - Intel® Xeon / DDR5 SO-DIMM / Mini PCIe
ATX motherboard - B14DBT  - SUPERMICRO - Intel® Xeon / DDR5 SO-DIMM / Mini PCIe
Add to favorites
Compare this product


Characteristics

Format
ATX
Processor
Intel® Xeon
Memory
DDR5 SO-DIMM
Extension slot
M.2 Key M, Mini PCIe
Applications
industrial, network
Connectivity
USB 3.1

Description

Physical Stats Form Factor - Proprietary Dimension - 18.23" x 6.3" (46.3cm x 16cm) Core - Up to 144 (E) cores System Memory Memory Capacity - 16 DIMM slots Memory Type - 6400 MT/s ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) DIMM Sizes - 16GB, 32GB, 64GB, 128GB, 256GB RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage - 1.1V Error Detection - Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset - Network Controllers - N/A Input / Output TPM - 1 TPM TPM 2.0 onboard Expansion Slots Form Factor: 2280 System BIOS BIOS Type - AMI 64MB AMI UEFI BIOS Features - ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 PC Health Monitoring Voltage - VBAT, System level control, Supports system management utility, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V LED - UID/Remote UID CPU / System Overheat LED Temperature - Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI FAN - 1x 4-pin fan header (up to 1 fan) Fan speed control Other Features - UID M.2 NGFF connector Control of power-on for recovery from AC power loss Chassis intrusion detection ACPI power management
