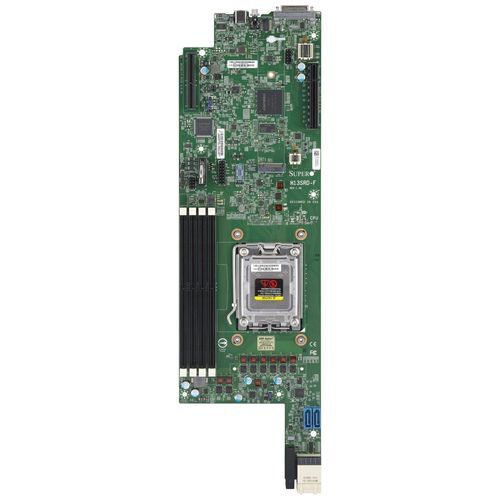

EPIC motherboard H13SRD-F

AMD EPYC™DDR5 SO-DIMMMini PCIe

Physical Stats Form Factor - Proprietary Dimension - 4.75" x 15.69" (12.07cm x 39.85cm) Up to 16 cores, 32 threads DIMM Sizes - 8GB, 16GB, 32GB, 48GB Memory Voltage - 1.1V Error Detection - Detects double-bit errors (using ECC memory) On-Board Devices Chipset - System on Chip IPMI - ASPEED AST2600 BMC Network Controllers - Single LAN with ASPEED AST2600 BMC, Via BPN connector Input / Output SATA - 2 SATA port(s) Link to AOC SAS Card USB - 1 USB 3.2 Gen2 port(s) (1 type C) 2 USB 2 port(s) (2 rear Via KVM connector) Video Output - 1 VGA port(s) Via KVM connector Serial Port - 1 COM Port(s) (1 Serial Port Via KVM connector) TPM - 1 TPM Header & Chip both Form Factor: 2280/22110 System BIOS BIOS Type - AMI 32MB SPI Flash EEPROM BIOS Features - ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) Management Power Configurations - ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN PC Health Monitoring Voltage - VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby, 1-fan status LED - UID/Remote UID Power LED BMC/IPMI Heartbeat LED CPU / System Overheat LED FAN - Low noise fan speed control Operating Environment Operating Temperature Range - 0°C - 50°C (32°F - 122°F) Non-Operating Temperature Range - -20°C - 60°C (-4°F - 140°F) Operating Relative Humidity Range - 10% - 85% (non-condensing) Non Operating Relative Humidity Range - 10% - 95% (non-condensing)
