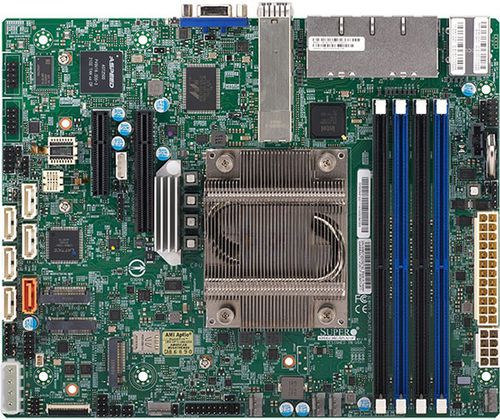

Flex-ATX motherboard A3SSV-16C-SPLN10F

Intel® AtomIntel®DDR4 SO-DIMM

Physical Stats Dimension - 9" x 7.25" (22.86cm x 18.42cm) Processor Up to 16 cores / 18MB Cache Note - System Memory Memory Type - 8GB, 16GB, 32GB, 64GB Memory Voltage - 1.2V Error Detection - Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset - System on Chip ASPEED AST2500 Graphics - 1 ASPEED AST2500 BMC port(s) Network Controllers - Dual LAN with SoC Quad LAN with Intel® i350 Gigabit Ethernet Controller Quad LAN with Marvell® Alaska® 88E1543 Input / Output LAN - 2 SFP28 25 Gigabit Ethernet LAN ports Video Output - Serial Port - 2 COM Port(s) (2 header) DOM - 1 SuperDOM (Disk on Module) power connector TPM - 1 TPM Header & Chip both Expansion Slots Form Factor: 2242/3042/2280, 2230, 2242/2280/22110 System BIOS BIOS Type - 32MB AMI UEFI BIOS Features - UEFI 2.7 SMBIOS 3.0 or later ACPI 6.0 or later Management Software - Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0, SuperDoctor® 5, Intel® Node Manager, SSM System Management Software - IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations - Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection Security Hardware - Trusted Platform Module (TPM) 2.0 Features - Cryptographically Signed Firmware Secure Boot Secure Firmware Updates System Lockdown PC Health Monitoring
