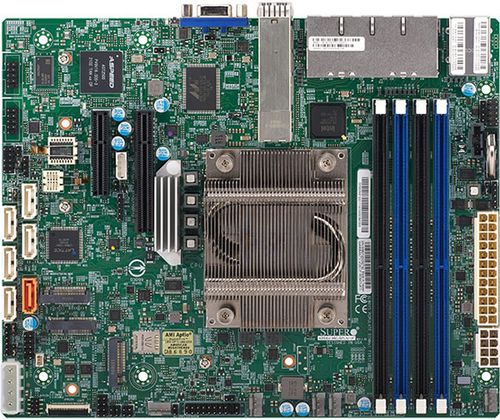

Flex-ATX motherboard A3SSV-8C-SPLN10F

Intel® AtomIntel®DDR4-RDIMM

Physical Stats Dimension - 9" x 7.25" (22.86cm x 18.42cm) Note - System Memory Memory Capacity - Memory Type - DIMM Sizes - 8GB, 16GB, 32GB, 64GB Memory Voltage - 1.2V Error Detection - Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset - System on Chip ASPEED AST2500 Graphics - 1 ASPEED AST2500 BMC port(s) Network Controllers - Dual LAN with SoC Quad LAN with Marvell® Alaska® 88E1543 Input / Output LAN - 2 SFP28 25 Gigabit Ethernet LAN ports Video Output - Serial Port - 2 COM Port(s) (2 header) DOM - 1 SuperDOM (Disk on Module) power connector TPM - 1 TPM Header & Chip both Expansion Slots Form Factor: 2242/3042/2280, 2230, 2242/2280/22110 System BIOS BIOS Type - 32MB AMI UEFI BIOS Features - UEFI 2.7 SMBIOS 3.0 or later ACPI 6.0 or later Management Software - System Management Software - Power Configurations - Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection Security Hardware - Trusted Platform Module (TPM) 2.0 Features - Cryptographically Signed Firmware Secure Boot Secure Firmware Updates System Lockdown PC Health Monitoring Voltage - VBAT, System level control, Supports system management utility, Monitors CPU voltages, Memory temperature, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V LED - UID/Remote UID Temperature - Thermal Control for 5 Fan Connectors CPU thermal trip support FAN - 5x 4-pin fan headers (up to 5 fans) Fan speed control, Dual Cooling Zone, 5 fans with tachometer status monitoring, Status monitoring for speed control
