3.5" motherboard A4SAN-E-WOHS
Intel Atom® x7433REIntel®SATA3

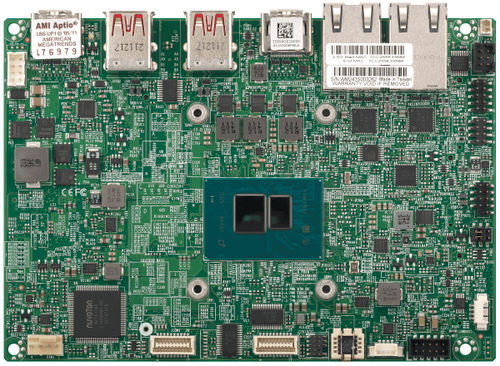

3.5" motherboard - A4SAN-E-WOHS - SUPERMICRO - Intel Atom® x7433RE / Intel® / SATA3
3.5" motherboard - A4SAN-E-WOHS - SUPERMICRO - Intel Atom® x7433RE / Intel® / SATA3
Add to favorites
Compare this product


Characteristics

Format
3.5"
Processor
Intel Atom® x7433RE
Chipset
Intel®
Extension slot
SATA3, M.2 Key E, M.2 Key M, M.2 Key B, Mini PCIe
Applications
industrial, network
Connectivity
USB 2.0, USB 3.2, HDMI, Ethernet

Description

Physical Stats Dimension - 5.7" x 4" (14.6cm x 10.16cm) Processor System Memory Memory Capacity - 1 DIMM slots Memory Type - DIMM Sizes - 8GB, 16GB SODIMM: 8GB, 16GB Memory Voltage - 1.1V On-Board Devices Chipset - System on Chip Audio - ALC 888S HD Audio Graphics - 1 Intel® UHD Graphics port(s) Network Controllers - Dual LAN with Intel® Ethernet Controller I226-AT Input / Output Video Output - TPM - 1 TPM Chip Others - 1 8-bit GPIO header 1 HD Audio header (Mic-in/Headphone-out) 1 SMBus/I2C header 1 Speaker w/ 3W amp. Expansion Slots PCIe - N/A M.2 - M.2 Interface: 1 SATA/PCIe3.0 x1/USB3/USB2; 1 SATA/PCIe3.0 x1; 1 PCIe3.0 x1/USB2 Form Factor: 2242/3052/2280, 2242/2280, 2230 Key: B-Key, M-Key, E-Key System BIOS BIOS Type - PC Health Monitoring FAN - 1x 4-pin fan header (up to 1 fan) Operating Environment Operating Temperature Range - -40°C - 85°C (-40°F - 185°F) Non-Operating Temperature Range - -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range - 8% - 90% (non-condensing) Non Operating Relative Humidity Range - 10% - 95% (non-condensing)
