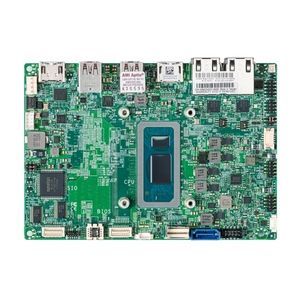

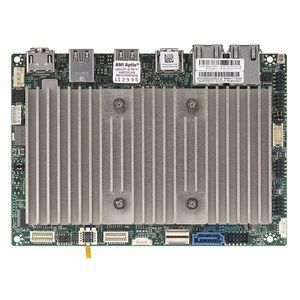

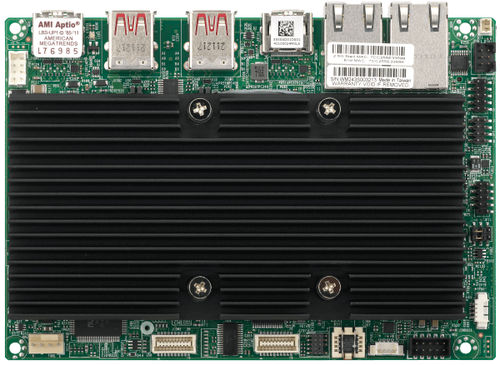

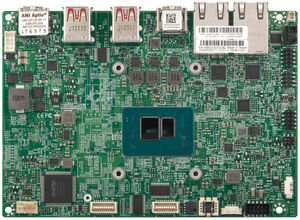

3.5" motherboard A4SAN-L
quad-coreIntel® Processor N97Intel®

3.5" motherboard - A4SAN-L  - SUPERMICRO - quad-core / Intel® Processor N97 / Intel®
3.5" motherboard - A4SAN-L  - SUPERMICRO - quad-core / Intel® Processor N97 / Intel®
Add to favorites
Compare this product


Characteristics

Format
3.5"
Processor
quad-core, Intel® Processor N97
Chipset
Intel®
Memory
DDR5 SO-DIMM
Extension slot
SATA3, M.2 Key E, M.2 Key M, M.2 Key B, Mini PCIe
Applications
industrial, network
Memory frequency
DDR5 4800 MHz
Connectivity
USB 2.0, USB 3.0, USB 3.2, HDMI, Ethernet

Description

Physical Stats Dimension - 5.7" x 4" (14.6cm x 10.16cm) Processor Core - Up to 4 cores / 6MB Cache System Memory Memory Capacity - DIMM Sizes - 8GB, 16GB Memory Voltage - 1.1V On-Board Devices Chipset - System on Chip Audio - ALC 888S HD Audio Graphics - 1 Intel® UHD Graphics port(s) Network Controllers - Dual LAN with Intel® Ethernet Controller I226-AT Input / Output TPM - 1 TPM Chip Others - 1 8-bit GPIO header 1 HD Audio header (Mic-in/Headphone-out) 1 SMBus/I2C header 1 Speaker w/ 3W amp. Expansion Slots Form Factor: 2242/3052/2280, 2230, 2242/2280 System BIOS BIOS Type - 32MB AMI UEFI BIOS Features - ACPI 6.4 SMBIOS 3.3 UEFI 2.7 PCI FW3.0 RTC (Real Time Clock) Wakeup PC Health Monitoring Voltage - VBAT, System temperature, CPU temperature, 3.3V standby, +5V standby, +3.3V, +12V, Vcore, VDD2 (VDIMM) Temperature - CPU thermal trip support Other Features - WOL RoHS Control of power-on for recovery from AC power loss ACPI power management FAN - 1x 4-pin fan header (up to 1 fan)
