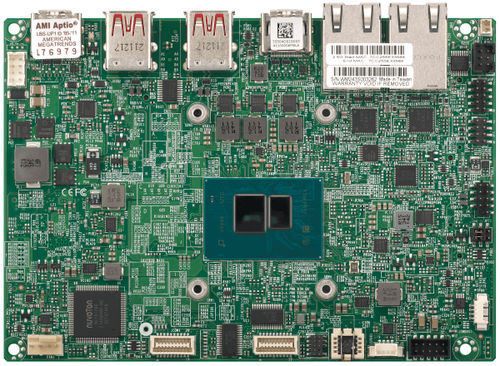

3.5" motherboard A4SAN-L-WOHS
Intel® Processor N97Intel®DDR5 SO-DIMM

3.5" motherboard - A4SAN-L-WOHS - SUPERMICRO - Intel® Processor N97 / Intel® / DDR5 SO-DIMM
3.5" motherboard - A4SAN-L-WOHS - SUPERMICRO - Intel® Processor N97 / Intel® / DDR5 SO-DIMM
Add to favorites
Compare this product


Characteristics

Format
3.5"
Processor
Intel® Processor N97
Chipset
Intel®
Memory
DDR5 SO-DIMM
Extension slot
SATA3, M.2 Key E, M.2 Key M, M.2 Key B, Mini PCIe
Applications
industrial, network
Connectivity
USB 2.0, USB 3.2, HDMI, Ethernet

Description

Physical Stats Dimension - 5.7" x 4" (14.6cm x 10.16cm) Processor System Memory Memory Capacity - 1 DIMM slots 8GB, 16GB SODIMM: 8GB, 16GB Memory Voltage - 1.1V On-Board Devices Chipset - System on Chip Audio - ALC 888S HD Audio Graphics - 1 Intel® UHD Graphics port(s) Network Controllers - Dual LAN with Intel® Ethernet Controller I226-AT Video Output - TPM - 1 TPM Chip Others - 1 8-bit GPIO header 1 HD Audio header (Mic-in/Headphone-out) 1 SMBus/I2C header 1 Speaker w/ 3W amp. Expansion Slots N/A Form Factor: 2242/3052/2280, 2230, 2242/2280 System BIOS BIOS Type - 32MB AMI UEFI BIOS Features - ACPI 6.4 SMBIOS 3.3 UEFI 2.7 PCI FW3.0 RTC (Real Time Clock) Wakeup PC Health Monitoring FAN - 1x 4-pin fan header (up to 1 fan) Operating Environment Operating Temperature Range - 0°C - 85°C (32°F - 185°F) Non-Operating Temperature Range - -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range - 8% - 90% (non-condensing) Non Operating Relative Humidity Range - 10% - 95% (non-condensing)
