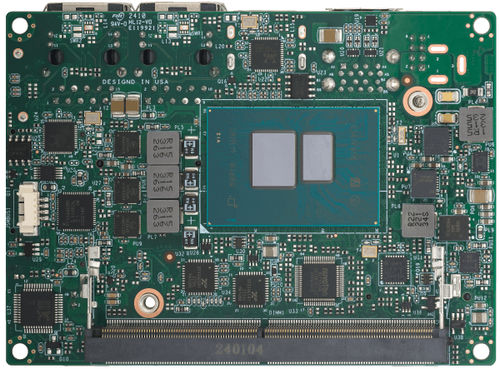

Pico-ITX motherboard A4SAP-E

quad-coreIntel Atom® x7433REIntel®

Physical Stats Dimension - 4" x 2.83" (10.16cm x 7.19cm) Up to 4 cores / 6MB Cache System Memory Memory Capacity - DIMM Sizes - 8GB, 16GB SODIMM: 8GB, 16GB Memory Voltage - 1.1V On-Board Devices Chipset - System on Chip SATA - SoC controller for 1 SATA3 (6 Gbps) ports Audio - ALC 888S HD Audio Network Controllers - N/A Input / Output LAN - 2 LAN Video Output - Others - 1 8-bit GPIO header 1 HD Audio header (Mic-in/Headphone-out) (Note:Audio only support 0~60C) 1 SMbus and 5V/A SATA Power bo header 1 SMBus Expansion Slots Form Factor: 2230, 2242 System BIOS BIOS Type - 32MB AMI UEFI BIOS Features - ACPI 6.4 SMBIOS 3.3 UEFI 2.7 PCI FW3.0 RTC (Real Time Clock) Wakeup PC Health Monitoring Voltage - VBAT, System temperature, CPU temperature, 3.3V standby, +5V standby, +3.3V, +12V, Vcore, VDD2 (VDIMM) Temperature - CPU thermal trip support Other Features - WOL RoHS Control of power-on for recovery from AC power loss ACPI power management Operating Environment Operating Temperature Range - -30°C - 75°C (-22°F - 167°F) Non-Operating Temperature Range - -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range - 8% - 90% (non-condensing) Non Operating Relative Humidity Range - 10% - 95% (non-condensing)
