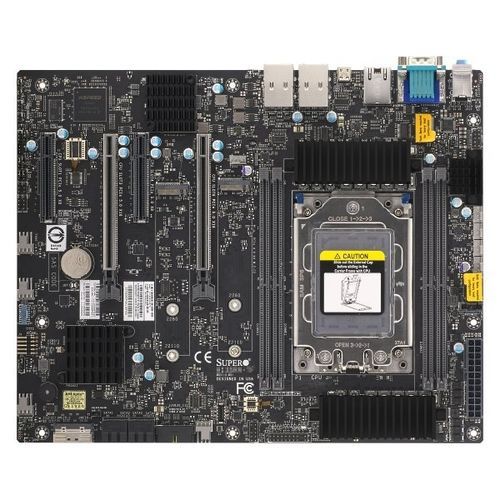

ATX motherboard H13SRA-F

AMD Ryzen™ ThreadripperDDR5 SO-DIMMSATA3

Physical Stats Dimension - 12" x 9.6" (30.48cm x 24.384cm) Processor CPU - Single Socket Socket sTR5 (LGA-4844) supported, CPU TDP supports Up to 350W TDP Core - Up to 96 cores, 192 threads System Memory Memory Capacity - 4 DIMM slots Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors DIMM Sizes - RDIMM/3DS RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB, 512GB, 1024GB Memory Voltage - 1.1V On-Board Devices Chipset - TRX50 Audio - ALC 888S HD Audio 5.1 Channel Network Controllers - Dual LAN with 1Gb Broadcom BCM5720 Single LAN with ASPEED AST2600, Dedicated LAN for IPMI Input / Output Video Output - Serial Port - 1 COM Port(s) (1 COM rear) TPM - 1 TPM Header Expansion Slots Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type - AMI 32MB SPI Flash EEPROM BIOS Features - ACPI 6.5 SMBIOS 3.6 or later UEFI 2.9 RTC (Real Time Clock) Wakeup Management Software - Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0 Power Configurations - Power-on mode for AC power recovery, ACPI Power Management, Wake-On-LAN, S4/S5
