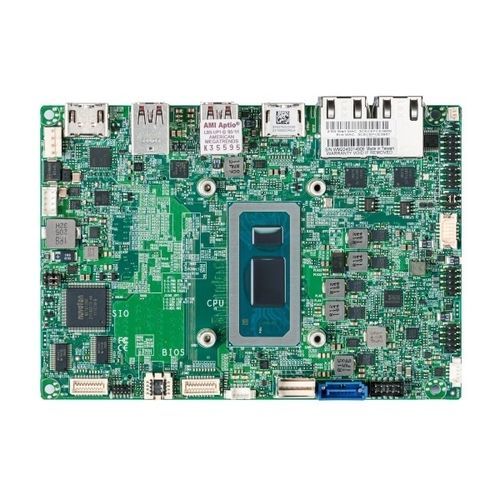

3.5" motherboard X13SAN-E-WOHS

12th Generation Intel® Core™Intel® Core™ i5-1245UEIntel®

Physical Stats Dimension - 5.7" x 4" (14.6cm x 10.16cm) Processor CPU - Single Socket FCBGA-1744 supported, CPU TDP supports Up to 15W TDP Core - Up to 10 cores, 12 threads / 12MB Cache System Memory Memory Type - 8GB, 16GB, 32GB Memory Voltage - 1.1V On-Board Devices Chipset - System on Chip Audio - ALC 888S HD Audio Graphics - 1 Intel® Iris® Xe Graphics port(s) Network Controllers - Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade Input / Output Serial Port - TPM - 1 TPM Chip Others - 1 8-bit GPIO header 1 SMBus header 1 System Fan Expansion Slots Form Factor: 2230, 2242/2280 System BIOS BIOS Type - AMI UEFI BIOS Features - ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 PCI FW 3.0 RTC (Real Time Clock) Wakeup Management System Management Software - SuperDoctor® 5 Power Configurations - ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input Security Hardware - Trusted Platform Module (TPM) 2.0 PC Health Monitoring Voltage - VBAT, +5V, +3.3V, +12V, +1.8V PCH, +3.3V standby, Vmem, Vcore, +1.05V LED - Power LED LAN activity LED HDD Activity LED Temperature - CPU thermal trip support peripheral temperature System temperature CPU temperature PCH temperature Other Features - RoHS FAN - 4x 4-pin fan headers (up to 4 fans)
