3.5" motherboard X13SAN-H
12th Generation Intel® Core™Intel® Core™ i7-1265UEIntel®

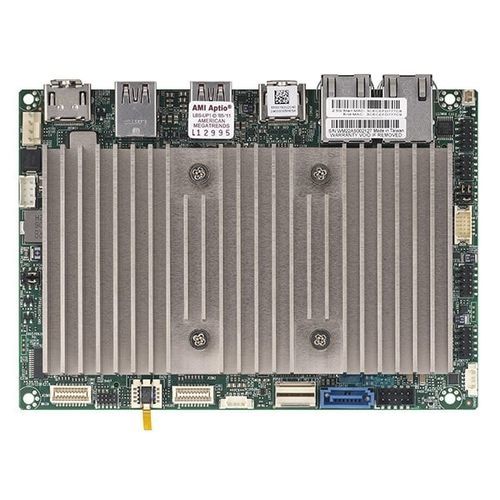

3.5" motherboard - X13SAN-H - SUPERMICRO - 12th Generation Intel® Core™ / Intel® Core™ i7-1265UE / Intel®
3.5" motherboard - X13SAN-H - SUPERMICRO - 12th Generation Intel® Core™ / Intel® Core™ i7-1265UE / Intel®
Add to favorites
Compare this product


Characteristics

Format
3.5"
Processor
12th Generation Intel® Core™, Intel® Core™ i7-1265UE
Chipset
Intel®
Memory
DDR4 SO-DIMM
Extension slot
SATA3, M.2 Key B
Applications
industrial, network
Connectivity
USB 2.0, USB 3.2, HDMI, RS-232, RS-485, RS-422, DisplayPort

Description

Physical Stats Dimension - 5.7" x 4" (14.6cm x 10.16cm) Processor CPU - Single Socket FCBGA-1744 supported, CPU TDP supports Up to 15W TDP Core - Up to 10 cores, 12 threads / 12MB Cache System Memory Memory Type - DIMM Sizes - 8GB, 16GB, 32GB Memory Voltage - 1.1V On-Board Devices Chipset - System on Chip Audio - ALC 888S HD Audio Graphics - 1 Intel® Iris® Xe Graphics port(s) Network Controllers - Input / Output TPM - 1 TPM Chip Others - 1 8-bit GPIO header 1 SMBus header 1 System Fan Expansion Slots Form Factor: 2242/2280 System BIOS BIOS Type - AMI UEFI BIOS Features - ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 PCI FW 3.0 RTC (Real Time Clock) Wakeup Management System Management Software - SuperDoctor® 5 Power Configurations - ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input Security Hardware - Trusted Platform Module (TPM) 2.0 PC Health Monitoring Voltage - VBAT, +5V, +3.3V, +12V, +1.8V PCH, +3.3V standby, Vmem, Vcore, +1.05V LED - Power LED LAN activity LED HDD Activity LED Temperature - CPU thermal trip support peripheral temperature System temperature CPU temperature PCH temperature Other Features - RoHS FAN - 4x 4-pin fan headers (up to 4 fans)
