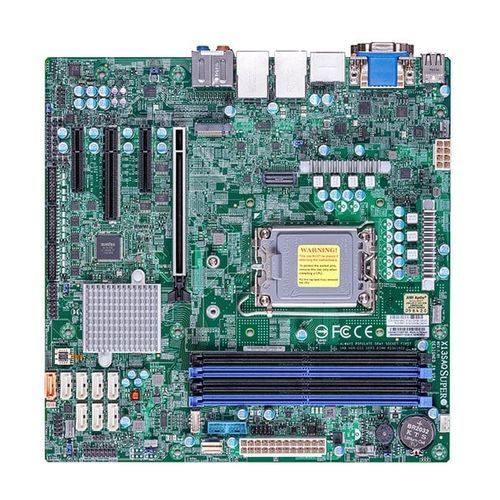

Micro-ATX motherboard X13SAQ

Intel® Celeron®Intel® Core i3Intel® Core i5

Physical Stats Dimension - 9.6" x 9.6" (24.38cm x 24.38cm) Processor Single Socket V0 supported Core - Up to 24 cores System Memory Memory Capacity - Memory Type - 4400/4000/3600 MT/s DIMM Sizes - 4GB, 8GB, 16GB, 32GB Memory Voltage - 1.1V On-Board Devices Chipset - Intel Q670E Audio - ALC 888S HD Audio Network Controllers - Input / Output Video Output - Serial Port - 6 COM Port(s) (2 header; 4 header) TPM - TPM TPM 2.0 onboard Expansion Slots System BIOS BIOS Type - AMI UEFI BIOS Features - ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup Management System Management Software - Wake-on-LAN, Watchdog Power Configurations - ACPI Power Management, ATX Power connector PC Health Monitoring Voltage - VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V LED - Power LED Temperature - Monitoring for CPU and chassis environment CPU thermal trip support Other Features - RoHS M.2 NGFF connector Chassis intrusion detection ATX Power connector ACPI power management FAN - 4x 4-pin fan headers (up to 4 fans) Operating Environment Operating Temperature Range - 0°C - 60°C (32°F - 140°F) Non-Operating Temperature Range - -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range - 10% - 85% (non-condensing) Non Operating Relative Humidity Range - 5% - 95% (non-condensing)
