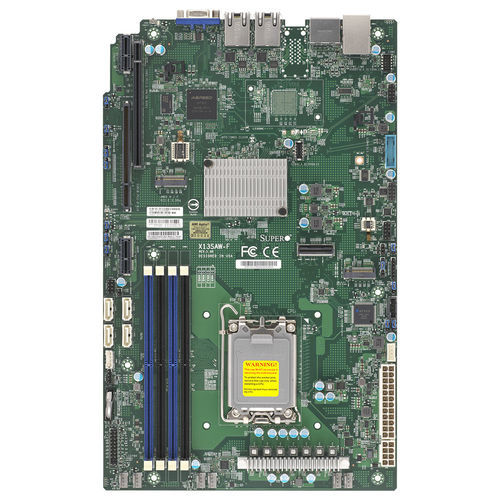

ATX motherboard X13SAW-F

Intel® Celeron®Intel® Core i3Intel® Core i5

Physical Stats Dimension - 8" x 13" (20.32cm x 33.02cm) Processor Core - Up to 24 cores System Memory Memory Type - 4400/4000/3600 MT/s DIMM Sizes - 4GB, 8GB, 16GB, 32GB Memory Voltage - 1.1V On-Board Devices Network Controllers - Dual LAN with Intel® i226 Input / Output Serial Port - 1 COM Port(s) (1 header) TPM - TPM TPM 2.0 onboard Expansion Slots Form Factor: 22110, 2280, 2280 System BIOS BIOS Type - AMI UEFI BIOS Features - ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup Management Software - Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0 System Management Software - Wake-on-LAN, Watchdog, KVM with dedicated LAN Power Configurations - ACPI Power Management, ATX Power connector, +12V DC Power Input PC Health Monitoring Voltage - VBAT, Memory temperature, CPU temperature, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID, 6 fans with tachometer status monitoring LED - Power LED Temperature - Monitoring for CPU and chassis environment CPU thermal trip support Other Features - RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source FAN - 6x 4-pin fan headers (up to 6 fans) Operating Environment Operating Temperature Range - 0°C - 60°C (32°F - 140°F) Non-Operating Temperature Range - -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range - 10% - 85% (non-condensing) Non Operating Relative Humidity Range - 10% - 95% (non-condensing)
