Micro-ATX motherboard X13SAZ-Q
Intel® Celeron®Intel® Core i3Intel® Core i5

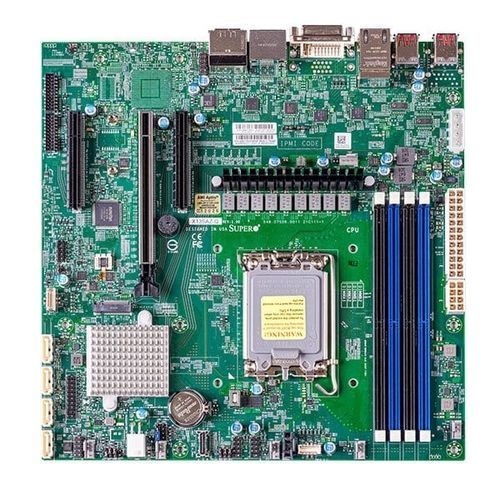

Micro-ATX motherboard - X13SAZ-Q - SUPERMICRO - Intel® Celeron® / Intel® Core i3 / Intel® Core i5
Micro-ATX motherboard - X13SAZ-Q - SUPERMICRO - Intel® Celeron® / Intel® Core i3 / Intel® Core i5
Add to favorites
Compare this product


Characteristics

Format
micro-ATX
Processor
Intel® Celeron®, Intel® Pentium, Intel® Core i5, Intel® Core i3, Intel® Core i7, 12th Generation Intel® Core™, Intel® Core™ i9, 13th Generation Intel® Core™, 14th Generation Intel® Core™
Chipset
Intel® Q670E
Memory
DDR5 UDIMM
Extension slot
SATA3, M.2 Key M, Mini PCIe
Applications
industrial, network
Connectivity
USB 2.0, USB 3.2, HDMI, RS-232, RS-485, RS-422, DisplayPort, DVI-D

Description

Physical Stats Dimension - 9.6" x 9.6" (24.38cm x 24.38cm) Processor Single Socket V0 supported Core - Up to 24 cores System Memory Memory Type - 4400/4000/3600 MT/s DIMM Sizes - 4GB, 8GB, 16GB, 32GB Memory Voltage - 1.1V On-Board Devices Audio - ALC 888S HD Audio Network Controllers - Input / Output TPM - TPM TPM 2.0 onboard Expansion Slots Form Factor: 2280/22110 System BIOS BIOS Type - AMI UEFI BIOS Features - ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup Management System Management Software - Wake-on-LAN, Watchdog Power Configurations - ACPI Power Management, ATX Power connector, +12V DC Power Input PC Health Monitoring Voltage - VBAT, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, 5 fans with tachometer status monitoring LED - Power LED Temperature - Monitoring for CPU and chassis environment CPU thermal trip support Other Features - RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source FAN - 6x 4-pin fan headers (up to 6 fans) Operating Environment Operating Temperature Range - 0°C - 60°C (32°F - 140°F) Non-Operating Temperature Range - -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range - 10% - 85% (non-condensing) Non Operating Relative Humidity Range - 5% - 95% (non-condensing)
