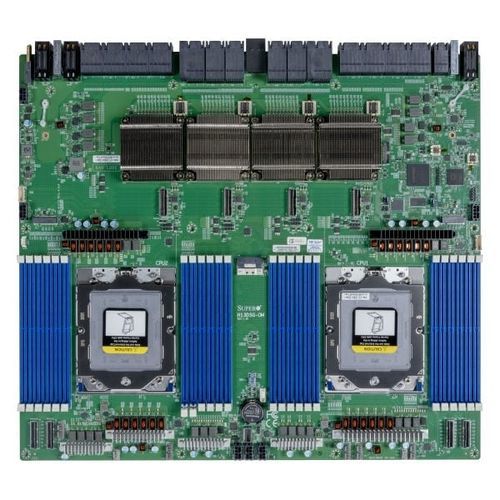

ATX motherboard H13DSG-OM

AMD EPYC™Intel®DDR5 SO-DIMM

Physical Stats Form Factor - Proprietary Dimension - 17" x 14.96" (43.18cm x 37.99cm) Processor Dual Socket SP5 supported, CPU TDP supports Up to 400W TDP Core - Up to 256 cores, 512 threads System Memory Memory Capacity - DIMM Sizes - 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB Memory Voltage - 1.1V Error Detection - Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset - System on Chip ASPEED AST2600 BMC Network Controllers - N/A Input / Output TPM - 1 TPM Header Expansion Slots Form Factor: 2280/22110 System BIOS BIOS Type - AMI 32MB SPI Flash EEPROM BIOS Features - ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) Management Software - Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0 Power Configurations - Power-on mode for AC power recovery, ACPI Power Management PC Health Monitoring Voltage - VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support LED - UID/Remote UID Power LED CPU / System Overheat LED BMC Heartbeat LED Other Features - RoT FAN - 5x 6-pin fan headers (up to 5 fans) Operating Environment Operating Temperature Range - 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range - -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range - 8% - 90% (non-condensing) Non Operating Relative Humidity Range - 5% - 95% (non-condensing)
