ATX motherboard H13SSW
AMD EPYC™Intel®DDR5 SO-DIMM

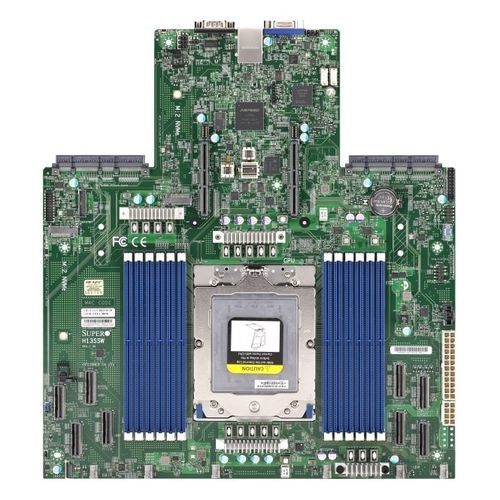

ATX motherboard - H13SSW  - SUPERMICRO - AMD EPYC™ / Intel® / DDR5 SO-DIMM
ATX motherboard - H13SSW  - SUPERMICRO - AMD EPYC™ / Intel® / DDR5 SO-DIMM
Add to favorites
Compare this product


Characteristics

Format
ATX
Processor
AMD EPYC™
Chipset
Intel®
Memory
DDR5 SO-DIMM
Extension slot
M.2 Key M, Mini PCIe
Applications
industrial, network, server
Connectivity
USB 2.0, USB 3.0, VGA, RJ45

Description

Physical Stats Form Factor - Proprietary Dimension - 12.29" x 13.4" (31.22cm x 34.04cm) Processor System Memory Memory Capacity - 12 DIMM slots Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MT/s 1.1V Error Detection - Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset - System on Chip ASPEED AST2600 BMC Graphics - 1 Aspeed AST2600 BMC port(s) Network Controllers - N/A Input / Output Serial Port - 1 COM Port(s) (1 Serial Port) TPM - 1 TPM Header Form Factor: 2280/22110 System BIOS BIOS Type - AMI 32MB SPI Flash EEPROM BIOS Features - ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support Management Software - Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0 Power Configurations - ACPI Power Management, Power-on mode control for AC power loss recovery PC Health Monitoring Voltage - VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby LED - UID/Remote UID BMC/IPMI Heartbeat LED Other Features - RoT FAN - 6x 4-pin fan headers (up to 6 fans) Operating Environment Operating Temperature Range - 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range - -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range - 8% - 90% (non-condensing) Non Operating Relative Humidity Range - 5% - 95% (non-condensing)
