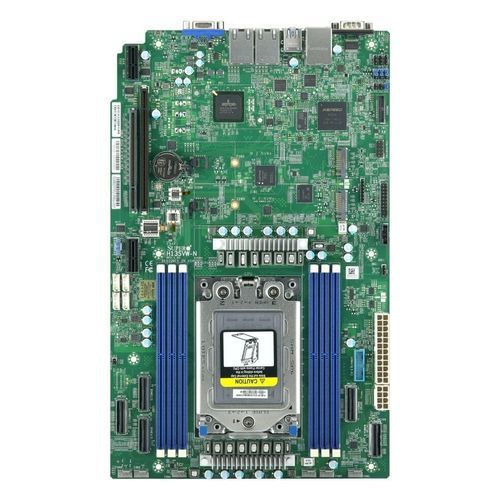

ATX motherboard H13SVW-N
AMD EPYC™Intel®DDR5 SO-DIMM

ATX motherboard - H13SVW-N - SUPERMICRO - AMD EPYC™ / Intel® / DDR5 SO-DIMM
ATX motherboard - H13SVW-N - SUPERMICRO - AMD EPYC™ / Intel® / DDR5 SO-DIMM
Add to favorites
Compare this product


Characteristics

Format
ATX
Processor
AMD EPYC™
Chipset
Intel®
Memory
DDR5 SO-DIMM
Extension slot
M.2 Key M, Mini PCIe
Applications
industrial, network, server
Memory frequency
DDR5 4800 MHz
Connectivity
USB 3.0, VGA

Description

Physical Stats Form Factor - Proprietary WIO Dimension - 8.15" x 13.05" (20.7cm x 33.15cm) Core - Up to 64 cores, 128 threads System Memory Memory Capacity - 8GB, 16GB, 32GB Memory Voltage - 1.1V Error Detection - Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset - System on Chip Network Controllers - Dual LAN with Broadcom BCM5720 1GBase-T Single LAN with Realtek RTL8211F PHY Input / Output TPM - 1 TPM Header System BIOS BIOS Type - AMI 32MB SPI Flash EEPROM BIOS Features - ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support Management Software - Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0 Security Hardware - Trusted Platform Module (TPM) 2.0 PC Health Monitoring Voltage - VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby LED - UID/Remote UID BMC/IPMI Heartbeat LED Other Features - RoT FAN - 6x 4-pin fan headers (up to 6 fans) Operating Environment Operating Temperature Range - 10°C - 35°C (°F - °F) Non-Operating Temperature Range - -40°C - 70°C (°F - °F) Operating Relative Humidity Range - 8% - 90% (non-condensing) Non Operating Relative Humidity Range - 5% - 95% (non-condensing)
