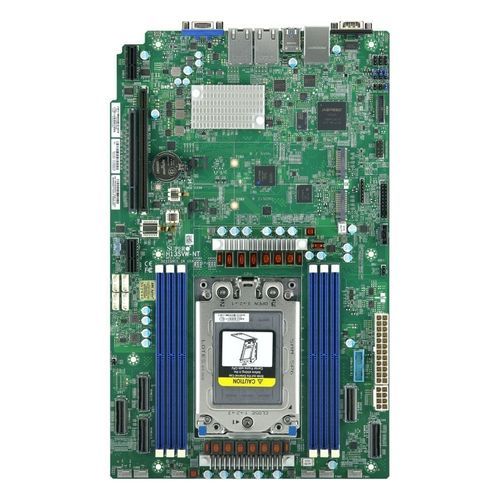

ATX motherboard H13SVW-NT-OS1

AMD EPYC™Intel®DDR5 SO-DIMM

Physical Stats Form Factor - Proprietary WIO Dimension - 8.15" x 13.05" (20.7cm x 33.15cm) Processor Single Socket SP6 supported, CPU TDP supports Up to 225W TDP Core - Up to 64 cores, 128 threads System Memory DIMM Sizes - 16GB, 32GB, 64GB, 96GB, 128GB Memory Voltage - 12V Error Detection - Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset - System on Chip Network Controllers - Dual LAN with Broadcom BCM57416 10GBase-T Single LAN with Realtek RTL8211F PHY Input / Output TPM - 1 TPM Header Others - 3 MCIO (PCIe 5.0 x8) Port(s) 2 MCIO (PCIe 5.0 x8/SATA3) Port(s) Form Factor: 2280/22110 System BIOS BIOS Type - AMI 32MB SPI Flash EEPROM BIOS Features - ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support PC Health Monitoring Voltage - VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby FAN - 6x 4-pin fan headers (up to 6 fans) Operating Environment Operating Temperature Range - 10°C - 35°C (°F - °F) Operating Relative Humidity Range - 8% - 90% (non-condensing) Non Operating Relative Humidity Range - 5% - 95% (non-condensing)
