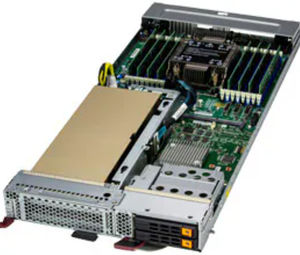

Network server SBI-422B-1NE14

rack-mountIntel® XeonDDR5-SODIMM

4. Support up to 9 drives per blade 5. Dual-port 25G Ethernet (LOM) 6. Expansion slot for IB or Ethenret mezzanine card and for OCP 3.0 compliant card 7. Liquid cooling solution is available System Memory On-Board Devices Chipset - System on Chip Network Controllers - Onboard Dual 25G Ethernet 1 expansion slot w/ optional mezzanine cards 1 expansion slot for OCP 3.0 compliant card (IB NDR/NDR200) MGMT/Security - IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust Graphics - Aspeed AST2600 System BIOS BIOS Type - 256Mb SPI Flash EEPROM with AMI® BIOS Dimensions Height - 1.75" Width - 6.5" Depth - 23.5" Weight - 9.5 lbs (4.3 kg) Available Colors - Metalic Silver with Black Drive Bays Front Panel Buttons - Power On/Off button LEDs - Power LED UID Network Activity LED Fault LED Expansion Slot OCP card - 1x OCP 3.0 card compliant including IB NDR or IB NDR200 Drive Bays Hot-swap - 4 E1.S drives M.2 - 1 NVMe M.2 2280 (onboard) Optional: 4 M.2 NVMe via mezz card Input / Output TPM - 1 TPM 2.0 Header Operating Environment RoHS - RoHS Compliant Environmental Spec. - Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
