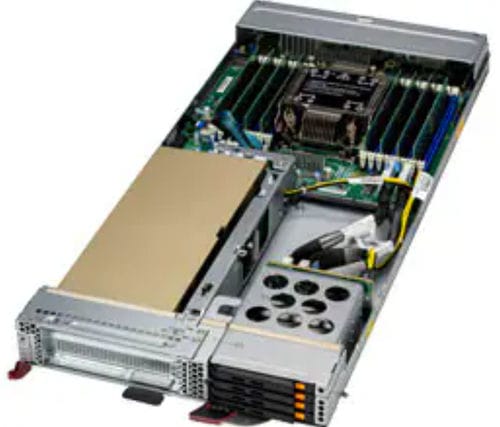

Storage server SBI-612B-1NE34

RAIDnetworkGPU

4. 4 Hot-swap E3.S SSD (PCIe Gen5) 5. Dual-port 25G Ethernet (LOM) 6. Expansion slot for Ethenret mezzanine card and for standard PCIe card GPU (per Node) Max GPU Count - Up to 1 double-width or 2 single-width GPU(s) System Memory (per Node) Memory Capacity - Up to 4TB 6400MT/s ECC DDR5 RDIMM On-Board Devices (per Node) Chipset - System on Chip NVMe - NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required) Network Controllers - Onboard Dual 25G Ethernet 1 expansion slot w/ optional mezzanine cards MGMT/Security - IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust Graphics - Aspeed AST2600 System BIOS BIOS Type - AMI 256MB SPI Flash EEPROM Dimensions Height - 9.75" Width - 1.75" Depth - 23.5" Weight - 12.1 lbs (5.49 kg) Available Colors - Metalic Silver with Black Drive Bays Front Panel Buttons - Power On/Off button LEDs - Power LED UID Network Activity LED Fault LED Expansion Slots (per Node) PCIe - 2 PCIe Gen5 x16 slot, support 1 FHFL DW PCIe card or 2 SW PCIe cards Drive Bays / Storage (per Node) Hot-swap - 4 Hot-swap E3.S drive bays M.2 - 1 M.2 2280 Input / Output TPM - 1 TPM Header Operating Environment RoHS - RoHS Compliant Environmental Spec. - Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
