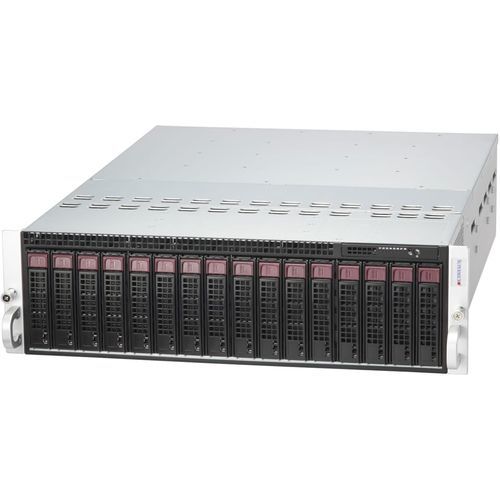

RAID server SYS-531MC-H8TNR

networkvideoGPU

Cloud Computing, Web Hosting, VM, Online Game Server Hosting, IT Infrastructure, Web Cache, Social Networking, Key Features Intel® C266; 8 set of PCIe 5.0 x8 (in x16 slot) low profile slot and 8 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable); 8 set of 2x Front Hot-swappable 3.5" SATA3 HDD or Hybrid 2x 2.5" SAS/SATA3/NVMe U.2 drives w/ option kits; 2200W Redundant Titanium Level high-efficiency power supplies; Form Factor Enclosure: 438 x 132 x 589mm (17.26" x 5.21" x 23.2") Package: 667 x 295.91 x 863.6mm (26.26" x 11.65" x 34") Processor Single LGA-1700 GPU Up to 1 single-width GPU System Memory Slot Count: 4 DIMM slots Drive Bays Configuration Default: Total 2 bays 2 front hot-swap 3.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110) Expansion Slots Default 1 PCIe 5.0 x8 (in x16) LP slot 1 PCIe 4.0 x8 (in x8) MicroLP slot On-Board Devices SATA: SATA (6Gbps) ; RAID 0/1 support Chipset: Intel® C266 Network Connectivity: No NIC option supported Video: 1 port(s) TPM: 1 TPM Onboard/port 80 System Cooling Fans: 4 Heavy Duty 8cm Fan(s) Power Supply 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies System BIOS BIOS Type: AMI 256MB SPI Flash EEPROM Management SuperCloud Composer; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring Temperature: Monitoring for CPU and chassis environment CPU: Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
