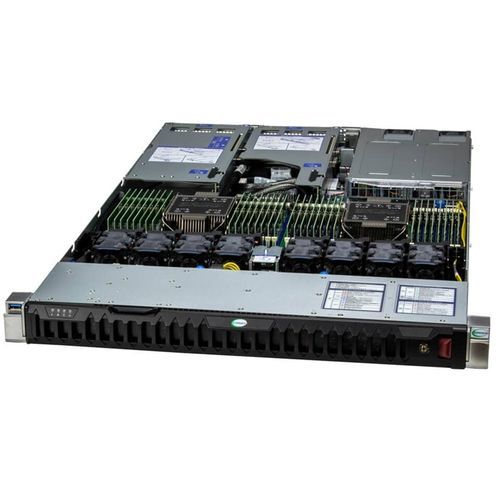

Storage server SYS-121H-TNR

RAIDnetworkGPU

Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Key Features Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors; 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600; 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards; Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible); 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card; 8 heavy duty hot-swap fans with optimal fan speed control Form Factor Enclosure: 437 x 43 x 747mm (17.2" x 1.7" x 29.4") Package: 605 x 206 x 1032mm (23.8" x 8.1" x 40.6") Processor Dual Socket E (LGA-4677) Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: Up to 1 double-width or 3 single-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, H100, RTX A5000, RTX A4000, L40S, L4 System Memory Slot Count: 32 DIMM slots Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110) Expansion Slots PCI-Express (PCIe) Configuration: Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) M.2: 2 M.2 NVMe/SATA slots (B+M-key 2280/22110) On-Board Devices SATA: SATA (6Gbps) ; RAID 0/1/5/10 support NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
