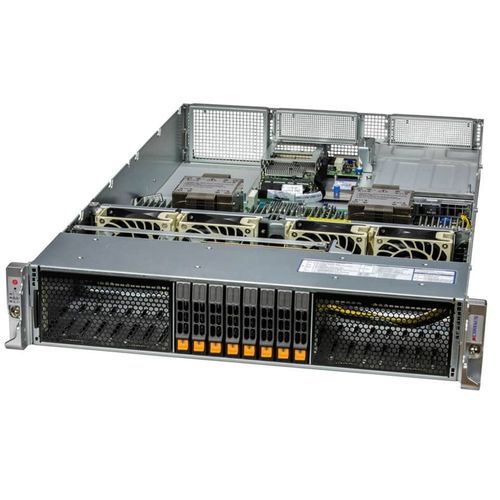

Storage server SYS-221H-TNR

RAIDnetworkvideo

Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Key Features Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors; 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600; Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for up to 4 double-width or 8 x8 single-width GPU/Accelerator cards; Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible); 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 8x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card; 4 heavy duty hot-swap fans with optimal fan speed control; Form Factor Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9") Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6") Processor Dual Socket E (LGA-4677) Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: Up to 4 double-width or 8 single-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, H100, L40, RTX A6000, RTX A4000, L40S, A40, A16, A100 System Memory Slot Count: 32 DIMM slots Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 16 bays 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110) Expansion Slots PCI-Express (PCIe) Configuration: Option A* 4 PCIe 5.0 x16 FH/10.5"L double-width slots
