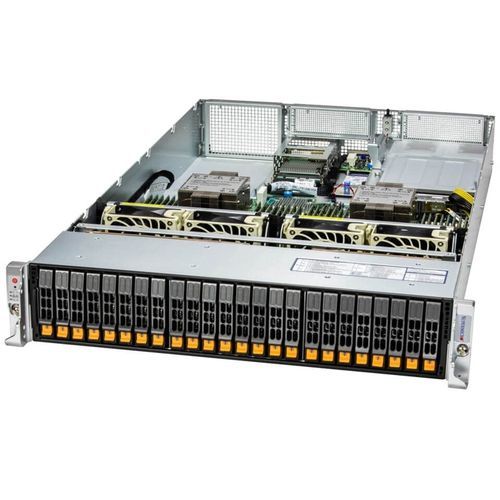

Storage server SYS-221H-TN24R

RAIDnetworkvideo

Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Key Features Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors; 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600; Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards; Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible); 24x 2.5" hot-swap NVMe/SATA/SAS drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card; 4 heavy duty hot-swap fans with optimal fan speed control; Form Factor Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9") Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6") Processor Dual Socket E (LGA-4677) Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: Up to 2 double-width or 3 single-width GPUs Supported GPU: NVIDIA PCIe: RTX A2000, L40S, A100 System Memory Slot Count: 32 DIMM slots Drive Bays Configuration Default: Total 24 bays 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110) Expansion Slots PCI-Express (PCIe) Configuration: Option A* 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option B* 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) M.2: 2 M.2 NVMe/SATA slots (B+M-key 2280/22110)
