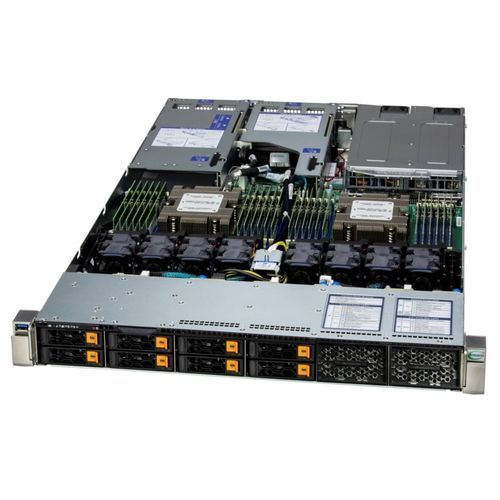

Network server AS -1125HS-TNR

video1U4th generation Intel® Core™

Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Key Features 2 PCIe 5.0 x16 FH, 10.5"L 1 PCIe 5.0 x16, FH, 6.6"L Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible); 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot); Form Factor Enclosure: 437 x 43 x 747mm (17.2" x 1.7" x 29.4") Package: 605 x 206 x 1032mm (23.8" x 8.1" x 40.6") Processor Dual Socket SP5 Up to 256C/512T System Memory Slot Count: 24 DIMM slots Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) Expansion Slots Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) On-Board Devices Chipset: System on Chip Network Connectivity: Via AIOM Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) Video: 1 VGA port(s)
