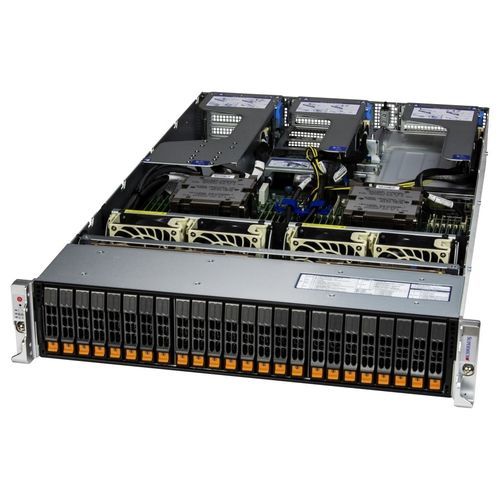

Network server AS -2125HS-TNR

videoGPU2U

Virtualization, Software-defined Storage, AI Inference and Machine Learning,Cloud Computing, Enterprise Server, Key Features 1 AIOM/OCP NIC 3.0 Slot For 24 SATA/SAS drive bay configuration: up to 4 PCIe 5.0 x16 expansion slots For 24 NVMe drive bay cofiguration: up to 1 PCIe 5.0 x16 expansion slots; 1600W Redundant Power Supplies (Titanium Level); 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot); Form Factor Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9") Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6") Processor Dual Socket SP5 AMD EPYC™ 9004 Series Processors Up to 256C/512T System Memory Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM Drive Bays Configuration Default: Total 24 bays 24 front fixed 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) Expansion Slots Default 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A* 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B* 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option C* 2 PCIe 5.0 x16 (in x16) FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option D* 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option E* 4 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option F* 4 PCIe 5.0 x16 (in x16) FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
