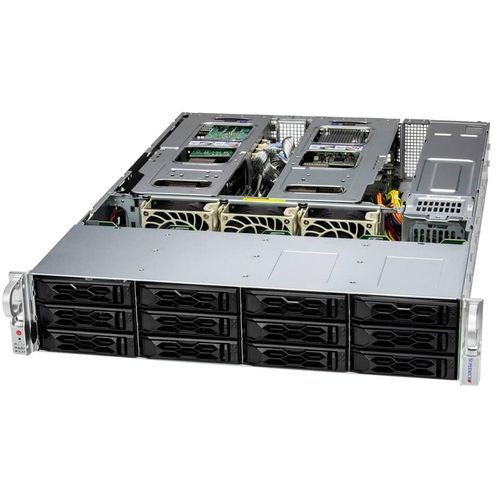

RAID server SYS-621C-TN12R

networkvideoGPU

Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Firewall Application, CDN, Edge Nodes, Key Features 4 PCIe 5.0 x8 FHHL (optional: combine into 2 PCIe 5.0 x16); 2 PCIe 5.0 x16 FHHL; 2 PCIe 5.0 x4 NVMe M.2; Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN; 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays; 3 heavy duty fans with optimal fan speed control, 1 air shroud; 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies; Form Factor Enclosure: 437 x 89 x 648mm (17.2" x 3.5" x 25.5") Package: 679 x 296 x 876mm (26.7" x 11.4" x 34.5") Processor Dual Socket E (LGA-4677) Up to 64C/128T; Up to 112.5MB Cache per CPU GPU Max GPU Count: Up to 2 double-width or 6 single-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, H100, L40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, L40S, L4, A2 Intel PCIe: Intel Data Center GPU Flex 140, Intel Data Center GPU Flex 170 System Memory Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Drive Bays Configuration Default: Total 12 bays 12 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID) Expansion Slots PCI-Express (PCIe) Configuration: Default 4 PCIe 5.0 x8 (in x16) FHFL double-width slots 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option A 2 PCIe 5.0 x16 FHFL double-width slots
