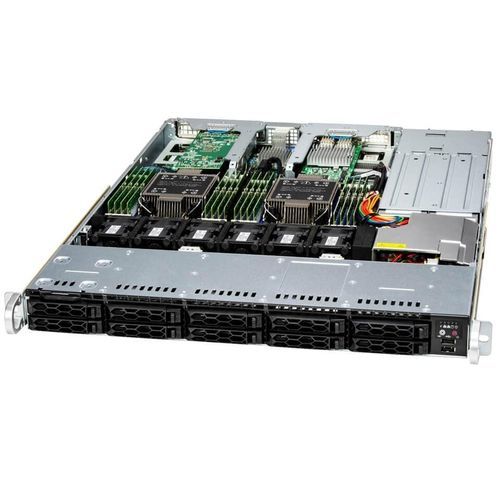

RAID server SYS-121C-TN10R

networkvideoGPU

Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Firewall Application, CDN, Edge Nodes, Key Features 2 PCIe 5.0 x16 FHHL; 2 PCIe 5.0 x4 NVMe M.2; Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN; 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays; 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds; 860W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies; Form Factor Enclosure: 437 x 43 x 597mm (17.2" x 1.7" x 23.5") Package: 605 x 197 x 822mm (23.8" x 7.8" x 32.4") Processor Dual Socket E (LGA-4677) Up to 36C/72T; Up to 82.5MB Cache per CPU GPU Max GPU Count: Up to 2 single-width GPUs Supported GPU: NVIDIA PCIe: L4, A2 Intel PCIe: Intel Data Center GPU Flex 140 System Memory Slot Count: 16 DIMM slots Drive Bays Configuration Default: Total 10 bays 10 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280; VROC required for RAID) Expansion Slots Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) On-Board Devices SATA: SATA (6Gbps) ; RAID 0/1/5/10 support NVMe: NVMe; RAID 0/1/5/10 support(VROC HW key required) Chipset: Intel® C741 Network Connectivity: Via Slim-AIOM Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) Video: 1 VGA port(s) Serial: 1 COM port(s) (Rear) TPM: 1 TPM header
