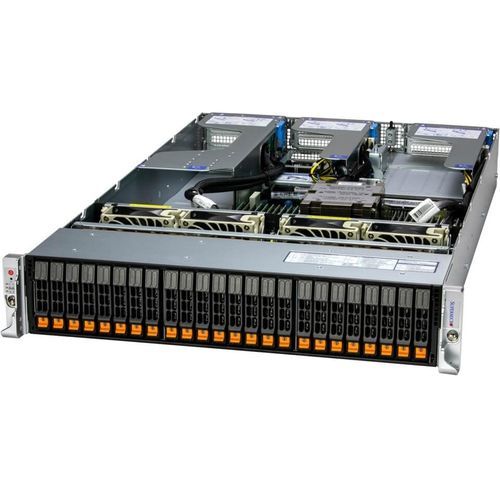

Network server AS -2115HS-TNR

videoGPU2U

Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Key Features 10 Expansion slots options with up to 4 PCIe 5.0 x16 slots Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible); 1600W Redundant Power Supplies (Titanium Level); 2 On-board NVMe M.2 slots; 1x PCIe 3.0 x4, 1x PCIe 3.0 x2; 80mm/110mm (Boot); Form Factor Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9") Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6") Processor Single Socket SP5 AMD EPYC™ 9004 Series Processors Up to 128C/256T GPU Max GPU Count: Up to 2 double-width GPUs Supported GPU: NVIDIA PCIe: RTX A6000, RTX 6000 Ada Generation CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: PCIe System Memory Slot Count: 24 DIMM slots Drive Bays Configuration Default: Total 24 bays 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280) 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280) Expansion Slots Default 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A* 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B* 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option C* 2 PCIe 5.0 x16 FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option D* 1 PCIe 5.0 x16 FHFL double-width slot 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
